Safety Yellow Thermoplastic Coated Tube lengths – 3.2m
LGP-HR-T-Y
From: £45.98£55.18 Exc VATInc VAT
Description

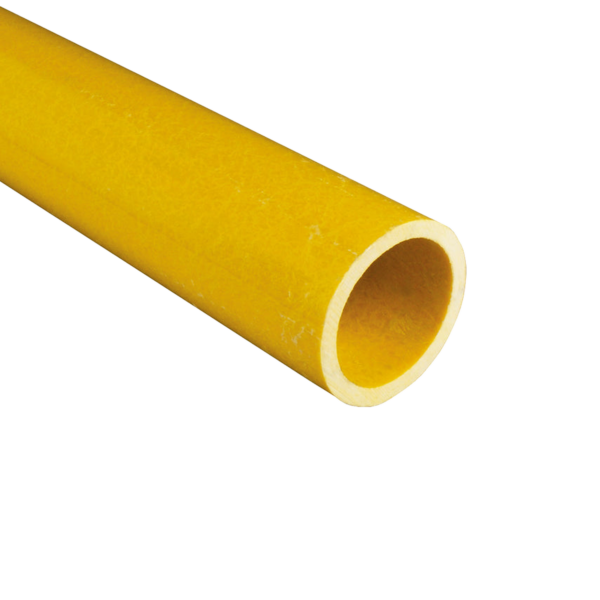

Safety Yellow Thermoplastic Coated Tube
Our Safety Yellow Thermoplastic Coated Tube provides a durable, highly visible tube solution for a wide range of industrial, commercial and workplace applications.
Available in three tube sizes, the steel tube is finished with a safety yellow thermoplastic coating, providing a hard-wearing and highly visible surface suitable for applications where both protection and visibility are important.
The tube is supplied from 6.2m stock lengths, which can be cut to the required size. For online orders, the maximum standard length that can be shipped is 3.2m due to carriage restrictions.
Available Tube Sizes
The range is available in three standard tube sizes, with different nominal bore and outside diameter dimensions.
Cut lengths can be requested for applications requiring a specific tube length. Contact us for a quotation on cut lengths.
Stock & Cut Lengths
Tube is held in 6.2m stock lengths and can be cut to suit individual requirements.
For standard online orders, the maximum length that can be shipped is 3.2m due to carriage restrictions.
If you require a specific cut length or a quantity that cannot be ordered as a standard online length, please contact us for a quotation.
Ideal Applications
Safety Yellow Thermoplastic Coated Tube can be used across a range of applications where a durable and highly visible tube is required, including:
- Industrial workplaces
- Warehouses and distribution centres
- Factory environments
- Workplace protection systems
- Safety barriers and guarding
- Handrails and protective structures
- General fabrication
- Equipment and machinery guarding
- Commercial and industrial installations
Technical Specifications
| Tube Size | Nominal Bore | Outside Diameter |
| B34 | 1″ | 33.7mm |
| C42 | 1 3/4″ | 42.4mm |
| D48 | 1 1/2″ | 48.3mm |
| Specification | Details |
| Product | Safety Yellow Thermoplastic Coated Tube |
| Available Tube Sizes | B34, C42, D48 |
| Stock Length | 6.2m |
| Maximum Standard Shipped Length | 3.2m |
| Cut Lengths | Available on request |
| Finish | Safety yellow thermoplastic coated |
Ordering Information
Standard tube lengths of up to 3.2 metres can be purchased online.
The tube is supplied from 6.2m stock lengths and can be cut to specific lengths where required. If you require a cut length or quantity not available as a standard online option, contact us for a quotation.
Please note that the 3.2m maximum shipping length is due to carriage restrictions and does not represent the maximum available stock length.
Technical information
| Weight | 0.5 kg |
|---|---|
| Handrail Tube Size | B34 – (33.7mm), C42 – (42.4mm), D48 – (48.3mm) |
| Fitting Type | Tube Length |
| Product Type | Handrail Tube |
Key Features
- Safety yellow thermoplastic coating
- Highly visible finish
- Available in three tube sizes
- Supplied from 6.2m stock lengths
- Maximum 3.2m length available for standard shipment
- Cut lengths available on request
- Suitable for a wide range of industrial and commercial applications
- Available to purchase online
- Contact us for quotations on bespoke cut lengths
Safety & User Instructions
- Ensure the selected tube size is suitable for the intended application.
- Check the tube for visible damage, deformation or coating defects before use.
- Do not use damaged or significantly deformed tube.
- Ensure cut lengths are suitable for the intended installation and application.
- Take appropriate precautions when handling and cutting tube.
- Cut ends may require suitable finishing or protection depending on the application.
- Ensure tube is correctly supported and securely fixed when used as part of a fabricated structure.
- The thermoplastic coating should not be considered a substitute for suitable structural design or engineering calculations.
- Ensure the finished installation is suitable for its intended load and environment.
- Where the tube forms part of a safety-critical structure, ensure the design and installation are assessed by a suitably competent person.
