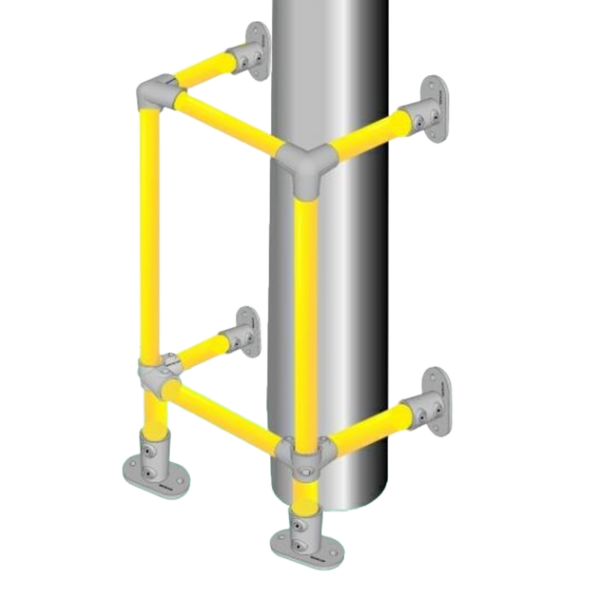

MezzBarriers Warehouse Structural Wall Barrier (Safety Yellow)

MEZ-WVWSB-YELL

The MezzBarriers Warehouse Vertical Wall Structural Barrier is a high-visibility, heavy-duty impact protection system designed to safeguard exposed columns, pipework, and building services from vehicle collisions in warehouse and industrial environments. Finished in thermoplastic safety yellow and compliant with BS EN 15512:2009, this modular barrier installs quickly with no welding or on-site fabrication required.

Price on request

If you would like to request a change to this product that isn’t available within the current options, please enter your requirements here. Any modifications will need to be processed through our quote system rather than purchased directly online.

Add to Quote

Description

Warehouse Wall Structural Barrier

The MezzBarriers Warehouse Vertical Wall Structural Barrier provides robust, space-efficient protection for exposed structural elements such as wall-mounted columns, pipework, and service risers within busy warehouse and industrial facilities. Designed to minimise accidental impact damage from forklifts, pallet trucks, and other site vehicles, this barrier helps reduce maintenance costs, prevent service disruption, and improve overall workplace safety.

Heavy-Duty Construction

Part of the MezzBarriers modular warehouse barrier range, this vertical wall structural guard is manufactured using 48.3 mm outside diameter heavy-wall steel tube, offering excellent strength and durability in high-traffic environments. The steel tube is finished with a hard-wearing thermoplastic coating (PPA 571 ES) in RAL 1021 Alert Safety Yellow, ensuring outstanding visibility and resistance to abrasion, chipping, and impact when compared to painted alternatives.

Space-Efficient Protective Design

The barrier features a vertical surround design with an external height of 1250 mm and an internal clearance of 300 mm × 300 mm, making it ideal for protecting wall-mounted services, columns, and structural uprights without obstructing pedestrian routes or vehicle movement. Its upright configuration deflects low-speed impacts away from vulnerable infrastructure, reducing the risk of damage and secondary safety hazards.

Quick and Simple Installation

Installation is fast and straightforward. The MezzBarriers Warehouse Vertical Wall Structural Barrier requires no welding, drilling, or on-site fabrication. All components are assembled using an Allen key, allowing installation by semi-skilled labour and making it particularly suitable for retrofit safety upgrades following site risk assessments or layout changes.

Compliance and Corrosion Resistance

Compliance is central to the design. This system conforms to BS EN 15512:2009 – Steel Static Storage Systems, ensuring suitability for warehouse environments where pallet racking and mechanical handling equipment are in operation. All fittings are hot-dip galvanised to BS EN ISO 1461, delivering excellent corrosion resistance and long service life. Stainless steel grub screws ensure secure connections and minimal ongoing maintenance.

Compliance & Standards

BS EN 15512:2009 – Steel static storage systems
Galvanised fittings to BS EN ISO 1461 and ASTM A53

Typical Applications

  • Wall-mounted column protection
  • Pipework and service riser safeguarding
  • Warehouse and logistics facilities
  • Distribution centres
  • Manufacturing and production environments
  • Areas with frequent forklift or pallet truck traffic

Materials & Finish

  • Tube: Steel with thermoplastic coating (PPA 571 ES)
  • Colour: RAL 1021 Alert Safety Yellow
  • Fittings: Hot-dip galvanised steel with stainless steel grub screws

The MezzBarriers Warehouse Vertical Wall Structural Barrier offers a durable, compliant, and highly visible solution for protecting critical wall-mounted structures and services in demanding warehouse environments.

Key Features

  • MezzBarriers branded vertical wall protection system
  • High-visibility Safety Yellow (RAL 1021) finish
  • Designed to protect columns, pipework, and exposed services
  • External height: 1250 mm
  • Internal clearance: 300 mm (W) × 300 mm (D)
  • 48.3 mm OD steel tube with 3.2 mm wall thickness
  • Hard-wearing thermoplastic tube coating for impact resistance
  • Galvanised steel fittings to BS EN ISO 1461
  • Stainless steel grub screws for low-maintenance durability
  • No welding or on-site fabrication required
  • Fast installation using an Allen key
  • Suitable for retrofit and new-build applications
  • Part of the wider MezzBarriers modular warehouse barrier range
