MezzBarriers Omega Space Saving Safety Pallet Gate
MEZ-OMEGA-PG
The Mezz Barrier Omega Space Space-saving mezzanine pallet gate with roller-assisted operation, made-to-measure for narrow walkways and restricted loading areas.
Price on request
Description
MezzBarriers Omega Space Saving Safety Pallet Gate
The MezzBarriers Omega Space Saving Safety Pallet Gate is designed to provide safe and controlled pallet loading on mezzanine floors, docks and high-level platforms where available space is limited. Its compact design makes it particularly suitable for narrow walkways, restricted loading areas and smaller mezzanine platforms where a conventional up-and-over pallet gate may not be practical.
The Omega uses a roller-assisted balanced-action lifting system to make opening and closing easier for operators, while maintaining continuous edge protection during pallet loading and unloading. The compact side frames allow the gate to operate within a restricted footprint, while providing access to three sides of the pallet for improved loading efficiency and manoeuvrability.
Each Omega Space Saving Pallet Gate is manufactured to measure, allowing the inside width, inside depth and load height to be specified to suit the application. The system is manufactured using galvanised steel and corrosion-resistant tube clamps, with replaceable components and no welded sections.
Space-Saving Pallet Protection
The Omega has been specifically developed for applications where a traditional pallet gate would take up too much space. Its compact side frames and roller-assisted movement allow the gate to operate effectively in confined areas without compromising the protection required around a mezzanine loading point.
The design helps replace temporary or unsuitable forms of protection, such as chains, removable barriers and bars, with a controlled mechanical pallet gate that remains part of the loading area.
Roller-Assisted Balanced Action

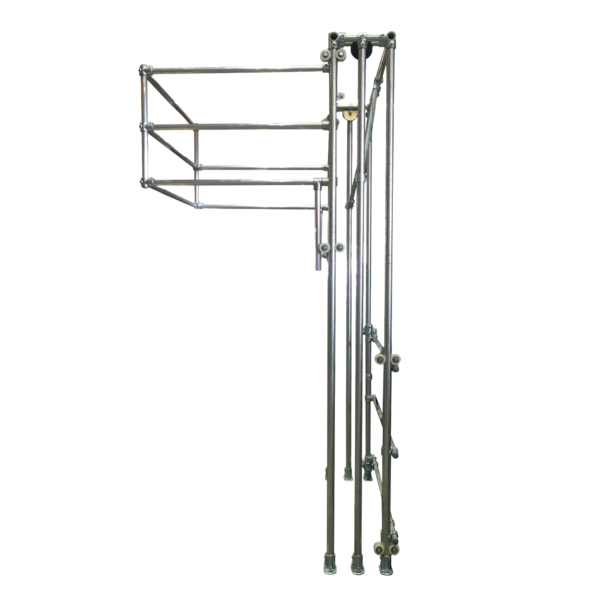

The gate uses a pull-down and push-up balanced-action system, with nylon rollers running within the compact side frames. Wire-rope pulleys assist the movement, helping the gate transition smoothly between its open and closed positions.
The self-lubricating nylon rollers provide low-friction operation while offering high wear and impact resistance, helping to reduce maintenance requirements over the working life of the gate.
Made-to-Measure Design
Every Omega pallet gate can be manufactured to suit the dimensions of the installation. This allows the gate to accommodate different mezzanine layouts, pallet sizes and loading requirements.
The available dimensions are:
- Inside width: up to 3000mm
- Inside depth: up to 2000mm
- Load height: up to 2500mm
The overall dimensions increase beyond the specified internal dimensions to accommodate the gate frame and operating mechanism.
Access to Three Sides of the Pallet
The Omega design provides access to three sides of the pallet, giving forklift operators and loading personnel greater visibility and manoeuvrability when positioning loads.
This can be particularly beneficial where space is restricted and a conventional gate design would limit access around the pallet.
Construction & Finish Options
The Omega is manufactured using a robust tube clamp construction system rather than welded components. This provides a strong and durable structure while allowing individual components to be replaced when required.
Two finish options are available:
- Fully galvanised construction

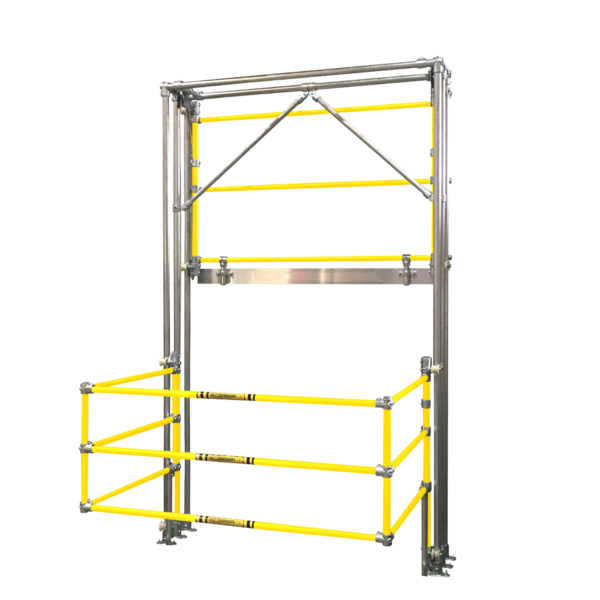

- Galvanised frame with Safety Yellow thermoplastic-coated gate tubes
The galvanised finish provides corrosion resistance, while the optional Safety Yellow thermoplastic coating provides increased visibility and a more comfortable surface where operators may come into contact with the gate tubes.
Ideal Applications
The Omega Space Saving Safety Pallet Gate is suitable for:
- Mezzanine floors
- Warehouses
- Distribution centres
- Industrial storage areas
- High-level loading platforms
- Raised work platforms
- Loading docks
- Narrow mezzanine walkways
- Restricted loading bays
- Areas handling standard or oversized pallets
- Applications where a conventional pallet gate cannot be accommodated
Custom Size Options
The Omega is manufactured to the dimensions required for the installation.
| Dimension | Maximum / Calculation |
|---|---|
| Inside Width (A) | Up to 3000mm |
| Overall Width | Inside width + 280mm |
| Inside Depth (B) | Up to 2000mm |
| Overall Depth | Inside depth + 100mm |
| Load Height (C) | Up to 2500mm |
| Overall Height | Load height + approx. 1400mm |
Please provide the required inside width, inside depth and load height when requesting a quotation.
Finish Options
| Finish | Description |
|---|---|
| Fully Galvanised | Galvanised frame and gate tubes |
| Galvanised & Safety Yellow | Galvanised frame with Safety Yellow thermoplastic-coated gate tubes |
Component Specifications
| Component | Specification |
|---|---|
| Tube Clamps | Malleable cast iron to BS EN 1562:1997 |
| Frame Finish | Hot-dip galvanised to BS EN ISO 1461:1999 |
| Grub Screws | Stainless steel |
| Rollers | Self-lubricating nylon |
| Roller Properties | Low friction, high wear resistance and impact resistant |
| Kick Plate | 100mm aluminium |
| Construction | Tube clamp system with no welded components |
| Installation | Supplied partially assembled |
Optional Extras
The following options are available on request and can be included when requesting a quotation:
- Additional handrailing to complete platform edge protection
- Aluminium floor/edge protection plates
- Safety netting for the edge gate
- Hi-Vis yellow/black hazard sleeves
Aluminium floor/edge protection plates: 1250 × 1150mm with a 100mm folded edge.
Hi-Vis hazard sleeves: 1000mm lengths.
Requesting a Quote
The MezzBarriers Omega Space Saving Safety Pallet Gate is manufactured to suit the individual application rather than supplied as a standard fixed-size gate.
When requesting a quotation, provide the required:
- Inside width (A)
- Inside depth (B)
- Load height (C)
- Preferred finish
- Any optional extras required
This allows the Omega to be configured for the available space while providing the required protection for your mezzanine loading area.
Key Features
- Space-saving design for restricted mezzanine loading areas
- Made-to-measure pallet gate
- Suitable for mezzanine floors, docks and high-level platforms
- Provides continuous edge protection during pallet loading and unloading
- Roller-assisted balanced-action operation
- Pull-down / push-up gate movement
- Nylon roller and pulley-assisted mechanism
- Self-lubricating nylon rollers
- Low-friction, high-wear and impact-resistant rollers
- Access to three sides of the pallet
- Suitable for standard pallets and oversized loads
- 100mm aluminium kick plate on the edge gate
- High load clearance for tall or stacked pallets
- Galvanised steel construction
- Corrosion-resistant tube clamp system
- Replaceable components
- No welded components
- Supplied partially assembled for installation
- Clear visibility into the loading area
- Fail-safe mechanical design
- Available with Safety Yellow thermoplastic-coated gate tubes
- Designed to comply with BS EN ISO 14122-3:2016
Safety & User Instructions
- The Omega must be correctly installed and secured before use.
- Ensure the gate is manufactured to suit the actual dimensions and loading requirements of the installation.
- Do not modify the gate, frame, operating mechanism or safety components without appropriate approval.
- Ensure the gate is fully closed and in its protected position when the loading area is not being actively accessed.
- Keep personnel clear of the pallet loading area during forklift operations.
- Take care around moving components, rollers, pulleys and potential pinch points.
- Do not place personnel, equipment or materials beneath or within the movement path of the gate.
- Ensure pallets and loads are stable and suitable for the loading application.
- Do not exceed the intended design or loading requirements of the pallet gate.
- Regularly inspect the frame, tube clamps, rollers, wire ropes, pulleys, kick plate and other operating components for damage or excessive wear.
- Do not use the gate if any component is damaged, loose or defective.
- Ensure the loading platform and surrounding area remain suitable for safe forklift operation.
- Installation and inspection should be carried out by suitably competent personnel.
- Follow the manufacturer’s installation, inspection and operating instructions.
- The Omega is designed in accordance with the requirements of BS EN ISO 14122-3:2016 for permanent means of access to machinery and associated safety requirements.
