Pewag Winner Pro Grade 12 Single Leg Chain Sling Assembly – 2.36t-12.50t WLL
PEW-CS-G12-1L
Pewag Winner Pro Grade 12 Single Leg Chain Sling with 2.36t-12.50t WLL, high-strength lightweight chain and flexible hook options for easier handling. supplied with 2m of chain length as standard.
From: £122.02£146.42 Exc VATInc VAT
Description

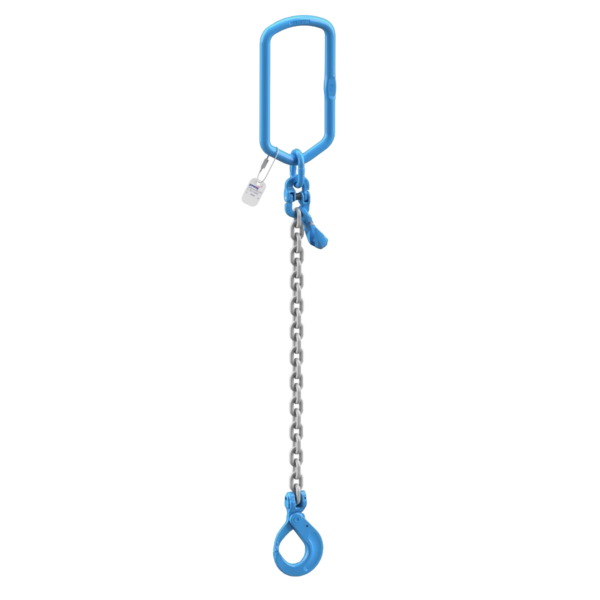

Pewag Winner Pro Grade 12 Single Leg Chain Sling Assembly
The Pewag Winner Pro Grade 12 Single Leg Chain Sling Assembly is a high-performance lifting solution designed for demanding industrial applications where high lifting capacity, reduced sling weight and easy handling are important. Manufactured using Pewag’s advanced Winner Pro Grade 12 profile chain and assembled in accordance with EN 818-4, this chain sling provides increased strength and lifting capacity compared with conventional Grade 8 and Grade 10 chain slings.
With an approximately 50% higher Working Load Limit (WLL) than Grade 8 and around 20% higher than Grade 10, Winner Pro Grade 12 allows a smaller nominal chain size to achieve the required lifting capacity. This results in a lighter sling that is easier to handle and rig, helping to reduce physical effort and operator fatigue during frequent lifting operations.
Winner Pro Grade 12 Chain for High-Performance Lifting
The single-leg configuration is suitable for direct vertical lifts as well as choke and basket lifting arrangements where a single attachment point is required. Winner Pro Grade 12 chain is available in diameters from 7mm to 13mm, providing a range of lifting capacities while maintaining a 4:1 safety factor.
The advanced Grade 12 profile chain provides a high strength-to-weight ratio, making it particularly useful where sling weight and manual handling are important considerations. The reduced chain size required for a given lifting capacity can also make rigging quicker and more manageable.
Oversized Master Link for Improved Load Distribution
Winner Pro Grade 12 single-leg assemblies use oversized Grade 12 master links with an asymmetrical design developed to optimise contact with crane hooks manufactured to DIN 15401.
The master link geometry is designed to improve load distribution and help reduce wear at the crane hook connection. This provides a robust connection between the lifting equipment and the crane hook during lifting operations.
Hook & Shortening Options
The sling can be configured to suit different lifting requirements with a choice of:
- Sling hooks with latch
- Standard self-locking safety hooks
- Oversized self-locking safety hooks
- Optional shortening grab hooks
Shortening grab hooks can be fitted to allow adjustment of the effective working length, or reach, providing additional flexibility when lifting variable or uneven loads.
Each sling is manufactured to order to the required effective working length and supplied with the selected hook configuration.
High-Visibility Grade 12 Chain
Winner Pro Grade 12 chain is designed for high-performance industrial lifting and provides a strong yet relatively lightweight solution. The chain is supplied with Pewag identification and traceability information, allowing important lifting details to be checked before use.
Each sling is supplied with a Declaration of Conformity and detailed safe use instructions.
Ideal Applications
Pewag Winner Pro Grade 12 Single Leg Chain Slings are suitable for:
- Heavy industrial and manufacturing lifting
- Construction and civil engineering
- Steel fabrication and structural lifting
- Machinery and plant handling
- Energy, utilities and infrastructure
- Maintenance, repair and overhaul operations
- General engineering and industrial lifting
- Frequent lifting where reduced sling weight is beneficial
- Applications requiring high lifting capacity from a compact chain sling
Technical Specifications
| Specification | Details |
|---|---|
| Chain Grade | Grade 12 |
| Chain Type | Winner Pro profile chain |
| Chain Diameter | 7mm–13mm |
| Configuration | Single leg |
| WLL Range | 2.36t-12.50t |
| Safety Factor | 4:1 |
| Master Link | Oversized Grade 12 asymmetrical master link |
| Crane Hook Compatibility | Designed for crane hooks manufactured to DIN 15401 |
| Hook Options | Sling hook with latch, standard self-locking safety hook or oversized self-locking safety hook |
| Shortening Options | Shortening grab hook available |
| Effective Length | Manufactured to order |
| Assembly Standard | EN 818-4 |
| Documentation | Declaration of Conformity and safe use instructions |
Capacity & Load Information
The Working Load Limit of the sling depends on the selected chain diameter and lifting configuration.
The stated 2.36t-12.50t WLL represents the supplied product range across the available chain sizes and configurations. The appropriate WLL must always be confirmed for the specific sling selected before lifting.
Single-leg chain slings can be used in different lifting arrangements, including vertical, choke and basket configurations. The applicable WLL can vary depending on the lifting method, so the manufacturer’s load-rating information should always be followed.
Never exceed the stated WLL for the specific sling and lifting arrangement.
Request a Pewag Winner Pro Grade 12 Chain Sling
Pewag Winner Pro Grade 12 Single Leg Chain Sling Assemblies are manufactured to order, allowing the chain diameter, effective working length, hook type and shortening options to be selected to suit the lifting application.
Technical information
| Weight | N/A |
|---|---|
| WLL | 2.36t, 3t, 5t, 8t, 12.5t |
| Gauge | 7, 8, 10, 13, 16 |
| Termination | Sling Hook, Self-Locking Hook, Oversized Safety Hook |
| Grade | 12 |
| Product Type | Chain Sling |
Key Features
- Pewag Winner Pro Grade 12 profile chain
- Single-leg configuration
- Approximately 50% higher WLL than Grade 8
- Approximately 20% higher WLL than Grade 10
- High strength-to-weight ratio
- Available in 7mm to 13mm chain diameters
- 4:1 safety factor
- Oversized Grade 12 master link
- Asymmetrical master link design for improved crane hook contact
- Compatible with crane hooks manufactured to DIN 15401
- Choice of latch hooks, standard self-locking safety hooks or oversized self-locking safety hooks
- Optional shortening grab hooks
- Manufactured to the required effective working length
- Supplied with Declaration of Conformity and safe use instructions
- Assembled in accordance with EN 818-4
Safety & User Instructions
- Confirm the Working Load Limit before every lift.
- Select the correct lifting method and ensure the sling is correctly attached.
- Check that the crane hook, master link and lifting points are correctly engaged before lifting.
- Observe any WLL reductions applicable to the selected lifting configuration.
- Inspect the chain, hooks, master link and fittings before every use.
- Do not use the sling if any component shows excessive wear, deformation, cracking or other damage.
- Avoid shock loading, side loading and sudden movements during lifting.
- Ensure the load is suitable for the selected sling and lifting arrangement.
- Use shortening devices only as intended by the manufacturer.
- Follow all Pewag Winner Pro operating, inspection and safety instructions.
