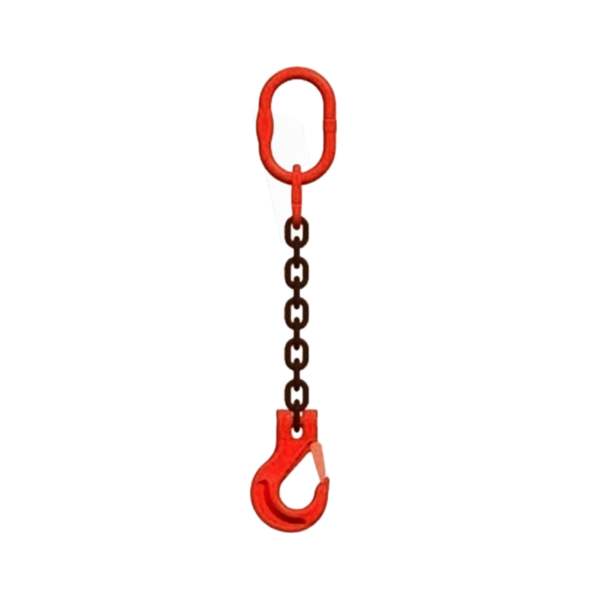

Pewag KWB Grade 8 Single Leg Chain Sling Assembly – 1.12t–31.5t WLL
PEW-CS-G8-1L
Pewag KWB Grade 8 single leg chain sling manufactured to EN 818-4. Heavy-duty lifting sling available in 6mm-32mm chain sizes with optional safety hooks and chain shorteners. Supplied as 2m EWL as standard.
From: £53.56£64.27 Exc VATInc VAT
Description
Pewag KWB Grade 8 Single Leg Chain Sling Assembly
The Pewag KWB Grade 8 Single Leg Chain Sling Assembly is a dependable and versatile lifting solution for straight vertical lifts, choke lifts and basket configurations. Manufactured using Pewag KWB Super Alloy Grade 80 chain and components, these chain slings are designed to provide high strength, durability and reliable performance in demanding industrial environments.
Single leg chain slings are ideal where a direct lifting connection is required, whether for loads with a single lifting point or applications where flexible rigging arrangements are needed. The Pewag KWB system combines high-quality chain and lifting components to provide a robust assembly suitable for repeated use across a wide range of lifting applications.
Available in chain diameters from 6mm to 32mm, with a choice of hook and termination options, each sling can be configured to suit the load and lifting application. Optional shortening grab hooks can also be fitted to allow the effective working length to be adjusted where required.
Grade 8 Chain for Versatile Lifting
Pewag KWB Super Alloy Grade 80 chain provides a high strength-to-weight ratio, making the sling robust while remaining practical to handle. The range is suitable for light to heavy lifting applications across workshops, manufacturing facilities, construction sites and industrial environments.
Single leg slings can be used in several lifting arrangements, including:
- Straight vertical lifts for direct lifting applications
- Choke lifts where the sling is passed around the load
- Basket configurations where the sling supports the load from underneath
The Working Load Limit depends on the chain diameter and the method of use, so the correct capacity must always be established before lifting.
Made-to-Order Hook & Termination Options
Pewag KWB single leg chain sling assemblies can be supplied with a choice of terminations to suit different lifting points and applications:
- Latch hooks
- Self-locking safety hooks
- Swivel Self-locking safety hooks
- Optional chain shortening grab hooks
The effective working length (reach) can also be specified, helping to ensure the sling is correctly sized for the intended lifting arrangement.
Adjustable Chain Sling Length
Where loads vary in size or shape, a shortening grab hook provides a convenient way to adjust the effective working length of the chain sling. This can help improve load positioning and control without requiring a different sling for every application.
Ideal Applications
Pewag KWB Grade 8 Single Leg Chain Sling Assemblies are suitable for:
- General industrial and workshop lifting
- Construction and civil engineering
- Steel fabrication and metalworking
- Machinery and plant handling
- Manufacturing and production
- Logistics and goods handling
- Maintenance and repair
- Mobile lifting applications
- Permanent lifting setups where a single-leg sling is required
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Grade 8 single leg chain sling assembly |
| Chain grade | Grade 8 / G80 |
| Chain type | Pewag KWB Super Alloy |
| Available chain diameters | 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm |
| Sling configuration | Single leg |
| Lifting configurations | Vertical, choke and basket |
| Terminations | Latch hook, C hook, self-locking safety hook |
| Shortening option | Shortening grab hook available |
| Effective working length | Made to order |
| Manufacturing standard | EN 818-4 |
| WLL range | Approximately 1.12t–31.5t, depending on chain size and configuration |
| Documentation | Declaration of Conformity and safe-use instructions |
| Supply | Made to order / telephone order for additional configurations |
Capacity & Load Information
The overall product range covers Working Load Limits from approximately 1.12t to 31.5t, depending on the chain diameter and lifting configuration.
The actual WLL of the sling must always be established from the selected chain diameter and method of use. Choke and basket configurations have different capacity ratings to a straight vertical lift, and the angle and way in which the sling is attached to the load can affect its rated capacity.
Always check the manufacturer’s load information before lifting and never exceed the stated WLL.
Request a Pewag KWB Chain Sling
Pewag KWB Grade 8 Single Leg Chain Sling Assemblies can be configured to suit the application, including chain diameter, hook type, shortening option and effective working length.
Contact LGP for pricing, configuration advice or larger chain sizes and additional components.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.12t, 1.5t, 2t, 3.15t, 5.3t, 8t, 12.5t, 15t, 21.2t, 31.5t |
| Grade | 8 |
| Product Type | Chain Sling |
| Gauge | 6, 7, 8, 10, 13, 16, 20, 22, 26, 32 |
| Termination | Sling Hook, Self Locking Hook, Swivel S/L Hook |
Key Features
- Pewag KWB Super Alloy Grade 80 chain and components
- Single leg chain sling assembly
- Suitable for vertical, choke and basket lifting configurations
- Chain diameters from 6mm to 32mm
- Choice of latch hooks, C hooks or self-locking safety hooks
- Optional shortening grab hook
- Effective working length can be specified
- High strength-to-weight ratio
- Suitable for demanding industrial lifting applications
- Manufactured and assembled in accordance with EN 818-4
- Supplied with Declaration of Conformity
- Safe-use instructions supplied
- Additional components, spare parts and larger chain sizes available on request
Safety & User Instructions
- Always confirm the Working Load Limit before lifting.
- Select the correct chain diameter and sling configuration for the load.
- Ensure the chain sling is correctly attached to the lifting point before applying the load.
- Consider the lifting method, sling angle and load arrangement when establishing capacity.
- Inspect the chain, hooks and fittings before each use.
- Remove the sling from service if links, hooks or fittings show signs of wear, deformation, cracking or other damage.
- Do not exceed the rated capacity of the sling.
- Avoid shock loading or sudden loading of the chain.
- Do not modify or repair the sling without appropriate manufacturer approval.
- Only competent and appropriately trained persons should select and use lifting slings.
- Follow the supplied Pewag safe-use instructions and applicable workplace lifting requirements.
