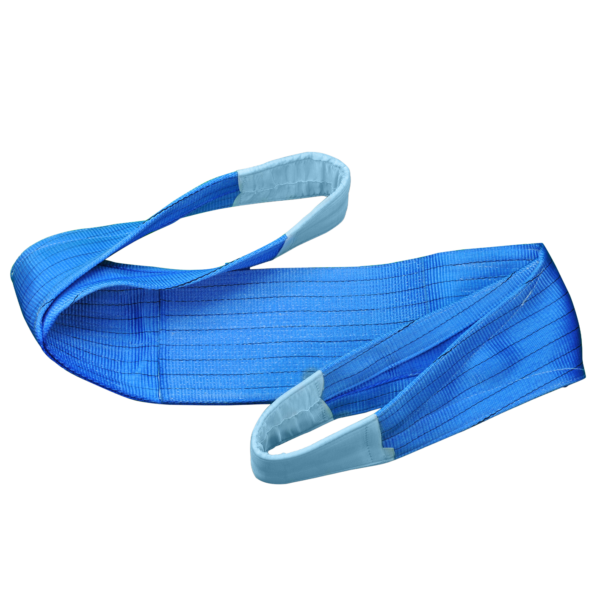

PlumAlti Heavy-Duty Duplex Webbing Sling – 8t WLL (Blue)
PLM-SR-WS8T
PlumAlti 8t duplex webbing sling, colour coded blue to EN 1492-1. Double-layer high-tenacity polyester webbing with a 7:1 safety factor, giving a gentle, non-marking lift for generators, transformers, vehicles, boats and packaged plant up to 8,000kg.
From: £25.16£30.19 Exc VATInc VAT
Description
PlumAlti Heavy-Duty Duplex Webbing Sling – 8t WLL
The PlumAlti 8 tonne Duplex Webbing Sling is a blue, double-layer polyester sling rated at 8,000kg in a straight lift. It is a popular choice for lifting high-value packaged equipment such as generators, transformers, switchgear, vehicles and boats, where the load needs a secure grip without scuffing paintwork, panels or housings.
Gentle on High-Value Equipment
Enclosures, cabinets, hulls and bodywork are easily dented or scratched by chain. The wide, soft webbing of an 8t duplex sling spreads the load across a larger contact area, reducing point pressure and protecting coated and painted surfaces. For loads with sharp edges or corners, such as steel skids and frames, fit wear sleeves or edge protectors to keep the webbing from being cut.
Blue Colour Coding for 8 Tonnes
Under EN 1492-1, blue identifies an 8 tonne sling. This makes it easy for slingers and crane operators to confirm the right capacity at a glance, and helps prevent an under-rated sling being picked up by mistake in a busy yard or loading bay.
8t Working Load Limits by Hitch
The WLL depends on how the sling is rigged. Using the standard EN 1492-1 mode factors:
- Straight lift: 8,000kg
- Choke hitch: 6,400kg
- Basket hitch (parallel): 16,000kg
- Basket hitch (0–45°): 11,200kg
- Basket hitch (45–60°): 8,000kg
The mode factors are also printed on the sling label for reference before every lift.
Strength, Safety and Compliance
The duplex construction uses two plies of 100% high-tenacity polyester for added strength and resistance to wear. Each sling has a 7:1 safety factor and is produced in accordance with BS EN 1492-1:2000 and the Machinery Directive 2006/42/EC. It is supplied with a Declaration of Conformity.
A blue traceability label shows the WLL, effective working length, unique serial number and mode factors, making inspections quick and keeping your LOLER records straightforward.
Suitable for Indoor and Outdoor Lifting
The sling can be used from -40°C to +100°C, so it handles cold yards, quaysides and outdoor sites as well as workshops. Elongation is limited to a maximum of 3% at WLL, keeping the load steady when lowering equipment onto plinths, trailers or foundations.
8t or 10t?
An 8t sling covers most generator, transformer and vehicle lifts while being lighter and easier to handle than the 10t version. If your heaviest load is close to 8 tonnes, or you will be using a choke hitch, step up to the PlumAlti 10t Duplex Webbing Sling (Orange) for extra headroom.
Typical Uses
- Generators and power units
- Transformers and switchgear
- Vehicles, plant and agricultural machinery
- Boats and marine equipment
- HVAC and rooftop plant
- Loading and offloading lorries and trailers
Need a specific length? Explore our Bespoke Duplex Webbing Sling range.
Compare all capacities in the PlumAlti Duplex Webbing Sling range (1t–10t WLL).
Webbing slings must be thoroughly examined at least every 6 months under LOLER. Book a LOLER inspection with our Sheffield or Manchester teams.
Technical information
| WLL | 8t |
|---|---|
| EWL | 2, 3, 4, 5, 6, 8 |
| Product Type | Webbing Sling |
