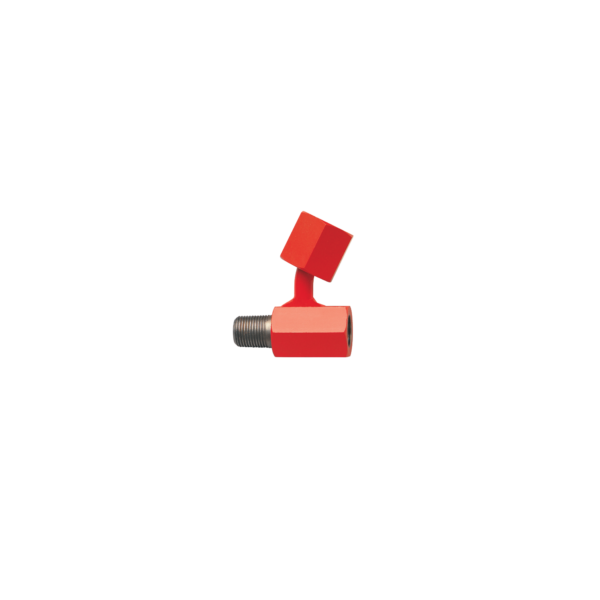

Yale GA Hydraulic Pressure Gauge Adaptors
YAL-HYG-GA
Pressure gauge adaptors with sleeve nut and 30° inclination for clear, easy reading on Yale HPS hand pumps.
£63.66£76.39 Exc VATInc VAT
Description
Yale GA Pressure Gauge Adaptors are designed for the safe and convenient connection of pressure gauges to Yale HPS series hand pumps. The integrated sleeve nut and 30° angled gauge orientation provide excellent readability while reducing mechanical stress on the gauge and connection points.
These adaptors ensure a secure, leak-free connection and allow the pressure gauge to be positioned in a clearly visible orientation, even in confined working areas. Manufactured for use in high-pressure hydraulic systems, GA adaptors are fully compatible with Yale hand pumps and accessories.
Technical data
Model Art.-No. Gauge connection Oil port (pump side) Oil port (hose side)
GA-700 N14200201 G 1/4 3/8 NPT outer 3/8 NPT inner
GA-701 N14200208 G 1/2 3/8 NPT inner 3/8 NPT inner
Typical applications
Connection of pressure gauges to HPS hand pumps
Monitoring hydraulic operating pressure
Mobile and stationary high-pressure hydraulic systems
Technical information
| Weight | N/A |
|---|---|
| Connection | G1/4, G1/2 |
Key Features
Pressure gauge adaptor with integrated sleeve nut
30ø inclined gauge position for improved readability
Suitable for all Yale HPS hand pumps
Secure and reliable high-pressure connection
Compact, robust design for workshop and site use
