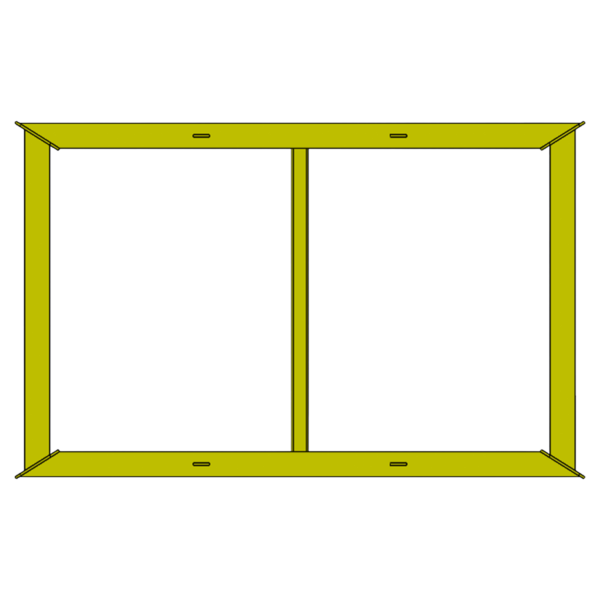

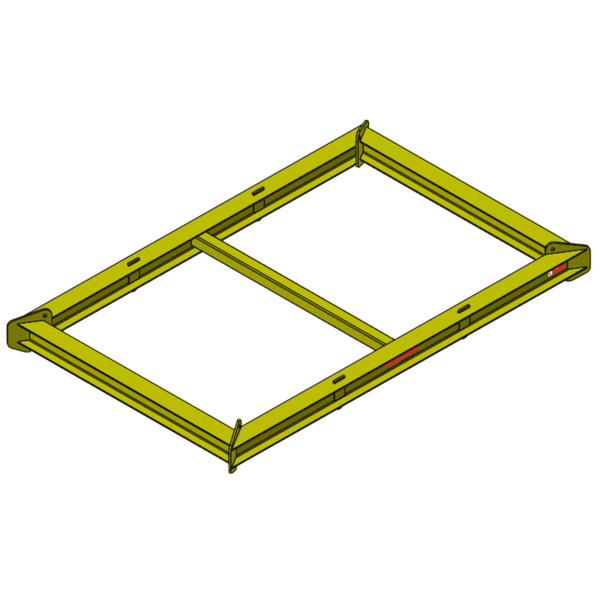

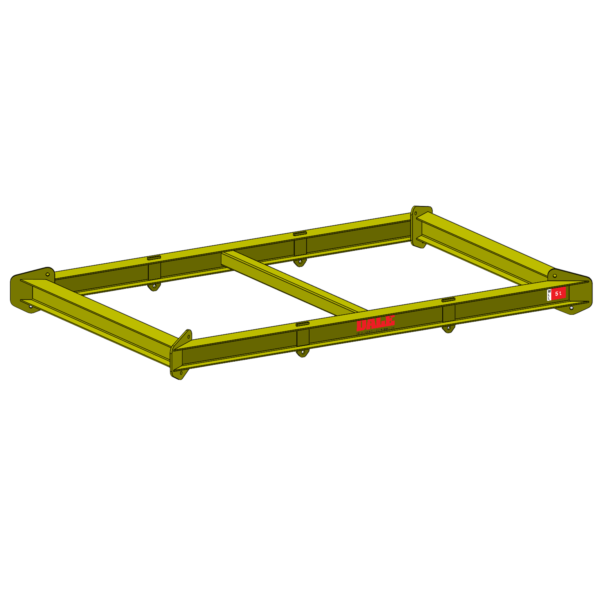

DALE DRS Bespoke Rectangular Spreader Lifting Frame

Description

Bespoke Rectangular Spreader Frame for Complex & Heavy-Duty Lifting Applications

The DALE DRS Bespoke Rectangular Spreader Lifting Frame is a fully customisable heavy lifting solution engineered for demanding and specialised lifting operations where stability, precision, and balanced load handling are essential. Designed and manufactured by DALE Lifting & Handling Specialists, the DRS frame provides exceptional flexibility for handling large, awkward, irregular, or sensitive loads across industrial, marine, engineering, and construction environments.

Built to customer specification, each DRS lifting frame is individually manufactured to suit the exact lifting application, allowing users to define Safe Working Load (SWL), frame dimensions, sling configurations, and lifting point arrangements.

The rectangular spreader frame design allows bottom slings to hang vertically or in basket configuration, helping clear the load while maintaining stable and controlled lifting performance.

Fully Bespoke Design for Specialised Lifting Requirements

Every DALE DRS frame is manufactured to order, enabling complete customisation to suit specific lifting operations and load characteristics.

Customisable features include:

• Safe Working Load (SWL)
• Overall frame dimensions
• Length and width centres
• Bottom lifting point configurations
• Top sling arrangements
• Connection fittings

This bespoke approach ensures the lifting frame is perfectly matched to the operational environment and lifting application.

Designed for Stable & Balanced Load Handling

The rectangular spreader frame configuration is specifically engineered to provide balanced load distribution and controlled lifting performance when handling large or irregular loads.

The design enables:

• Vertical sling lifting arrangements
• Basket sling configurations
• Improved load stability
• Reduced compressive forces
• Better load clearance
• Safer handling of delicate or oversized equipment

This makes the DRS frame particularly effective for lifting applications where standard spreader beams or fixed lifting frames may be unsuitable.

Flexible Bottom Fitting Configurations

The DRS Bespoke Rectangular Spreader Frame can be supplied with a wide range of bottom lifting point options to suit different lifting systems and load requirements.

Available bottom fittings include:

• Shackles
• Hooks
• Drop chains
• Drop wires
• Polyester slings
• Custom lifting attachments

This flexibility allows the frame to integrate easily into existing lifting arrangements while accommodating complex or unusual lifting tasks.

Chain or Wire Rope Top Sling Options

The top sling assembly can be configured using either:

• Chain slings
• Wire rope slings

Depending on operational requirements and lifting preferences.

Optional centre of gravity (COG) adjustment systems can also be incorporated to assist with:

• Uneven loads
• Off-centre lifting
• Load balancing
• Precision positioning
• Improved lifting stability

This enables operators to safely handle asymmetrical or irregularly weighted loads with greater control.

Ideal for Large, Irregular & Sensitive Loads

The DALE DRS frame is widely used for handling complex loads that require accurate lifting geometry and stable support.

Typical applications include:

• Skid frames
• Boats and marine equipment
• Industrial machinery
• Steel fabrications
• Plant equipment
• Modular assemblies
• Process equipment
• Construction components

Its versatile lifting configurations make it highly effective for specialist lifting operations across multiple industries.

Heavy-Duty Construction with Corrosion-Resistant Finish

Manufactured using high-quality steel and precision engineering techniques, the DRS frame is built to withstand demanding industrial lifting environments.

Each frame is finished with a high-visibility corrosion-resistant coating that provides:

• Long-term durability
• Improved environmental resistance
• Reduced maintenance
• Enhanced workplace visibility
• Professional industrial appearance

The robust construction ensures dependable performance under heavy lifting conditions.

Manufactured to High Safety Standards

With over 70 years of lifting expertise, DALE Lifting & Handling Specialists manufacture every DRS frame to strict safety and quality standards.

Each lifting frame is supplied with:

• EC Certificate of Conformity
• Proof load testing certification
• User manual
• Maintenance instructions

The DRS frame is designed with a minimum 4:1 safety factor to ensure safe and reliable lifting performance in professional environments.

Suitable for Complex Industrial & Engineering Applications

The DALE DRS Bespoke Rectangular Spreader Frame is ideal for industries requiring specialist lifting solutions for large or irregular loads.

Common applications include:

• Heavy engineering
• Marine and offshore lifting
• Construction projects
• Industrial plant maintenance
• Machinery relocation
• Fabrication handling
• Modular construction lifting
• Infrastructure installation

Its bespoke configuration capability makes it an essential solution for challenging lifting operations where standard lifting equipment cannot provide adequate control or flexibility.
