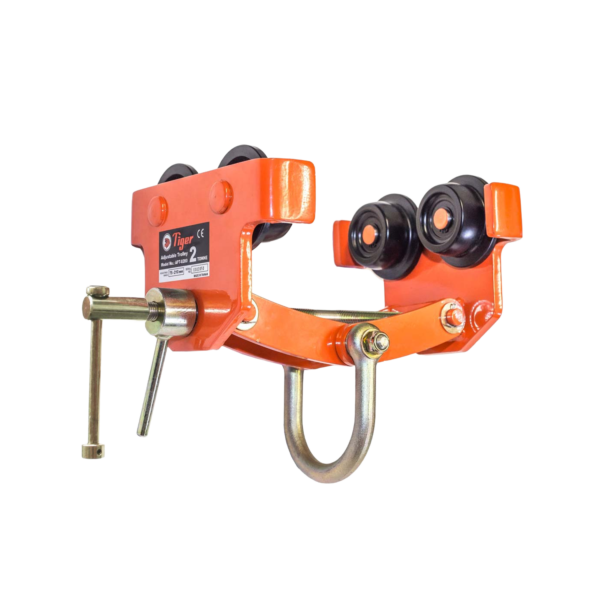

Tiger APT Adjustable Plain/Push Trolley – 1t-10t WLL
TIG-PT-APT
Tiger APT Heavy-duty adjustable plain trolley (push trolley) from Tiger Lifting, designed for smooth beam travel and secure hoist suspension. Available from 1 tonne to 10 tonne capacity, featuring adjustable flange width, sealed bearings, anti-drop plates, and BS EN 13157 compliance. Ideal for workshops, construction, and industrial lifting systems.
From: £205.80£246.96 Exc VATInc VAT
Description
Heavy-Duty Adjustable Plain Trolley for Beam Travel
The Tiger APT Adjustable Plain Trolley from Tiger Lifting is a robust, high-performance beam trolley designed to safely suspend and transport lifting equipment along overhead beams. Engineered for reliability and ease of use, this push travel trolley allows operators to manually move hoists and loads smoothly along the beam with minimal effort.
With capacities ranging from 1 tonne to 10 tonnes, the APT trolley is ideal for a wide range of lifting and handling applications, including construction sites, fabrication workshops, warehouses, and maintenance environments. Its durable construction and adjustable design make it a versatile solution for both temporary and permanent installations.
Adjustable Beam Fit for Maximum Versatility
This adjustable plain trolley is fitted with a screw spindle mechanism, enabling precise and secure adjustment to suit a wide range of beam flange widths. The integrated locking device with high clamping force ensures the trolley remains firmly positioned during operation, enhancing safety and operational stability.
Designed with universal wheels, the trolley is compatible with both flat and tapered beam profiles, providing flexibility across different structural steel setups. This makes it a dependable choice for varied lifting environments where beam configurations may differ.
Smooth Operation with Minimal Maintenance
The Tiger APT trolley features sealed precision bearings, ensuring smooth rolling movement along the beam while reducing friction, wear, and maintenance requirements. This results in easier load positioning and improved operator control during lifting tasks.
Its powder-coated wheels and components offer added durability and corrosion resistance, extending the product’s lifespan even in demanding industrial conditions.
Enhanced Safety Features Built In
Safety is a key priority in the design of the APT trolley. It includes anti-drop plates, which provide additional protection by preventing the trolley from falling in the event of wheel failure or accidental derailment. These plates also help protect the wheels when making contact with end stops on the beam.
Manufactured with a 5:1 safety factor, the trolley is suitable for use with both manual and powered hoists, ensuring dependable performance under load. Each unit is supplied fully certified, including either a test certificate or EC Declaration of Conformity, confirming compliance with the Machinery Directive 2006/42/EC.
Standards Compliance & Operating Conditions
The Tiger Adjustable Plain Trolley meets and exceeds the requirements of BS EN 13157:2004+A1:2009 and AS1418.2, ensuring it is suitable for professional lifting operations.
It operates within a standard temperature range of –40°C to +80°C, with an optional extended range down to –60°C, making it suitable for both indoor and outdoor environments, including harsh weather conditions.
Ideal for Multiple Industrial Applications
This beam trolley is widely used across industries such as:
- Construction and infrastructure projects
- Manufacturing and engineering facilities
- Warehousing and logistics operations
- Maintenance and plant servicing
- Industrial lifting and rigging systems
Its combination of strength, adjustability, and ease of use makes it a reliable solution for transporting suspended loads safely and efficiently.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2t, 3t, 6t, 10t |
| Beam Width | 75-210mm, 105-305mm, 160-305mm |
Key Features
- Heavy-duty adjustable plain (push) beam trolley
- Manufactured by Tiger Lifting
- Capacity range from 1 tonne to 10 tonnes
- Adjustable screw spindle for different beam widths
- Compatible with flat and tapered beams
- Sealed bearings for smooth, low-effort movement
- Anti-drop plates for enhanced safety
- High-strength locking mechanism
- Durable powder-coated finish
- Certified to BS EN 13157 and Machinery Directive 2006/42/EC
- Operating temperature range –40°C to +80°C (–60°C optional)
- 5:1 safety factor suitable for manual or powered hoists
Safety & User Instructions
- Always ensure the trolley is correctly adjusted and securely clamped to the beam before use.
- Check beam compatibility and flange width prior to installation.
- Inspect wheels, bearings, and locking mechanism regularly.
- Do not exceed the stated working load limit.
- Avoid shock loading or sudden impacts.
- Ensure end stops are fitted to the beam to prevent over-travel.
- Never use for lifting or transporting personnel.
- Follow all relevant lifting safety regulations and inspection procedures.
