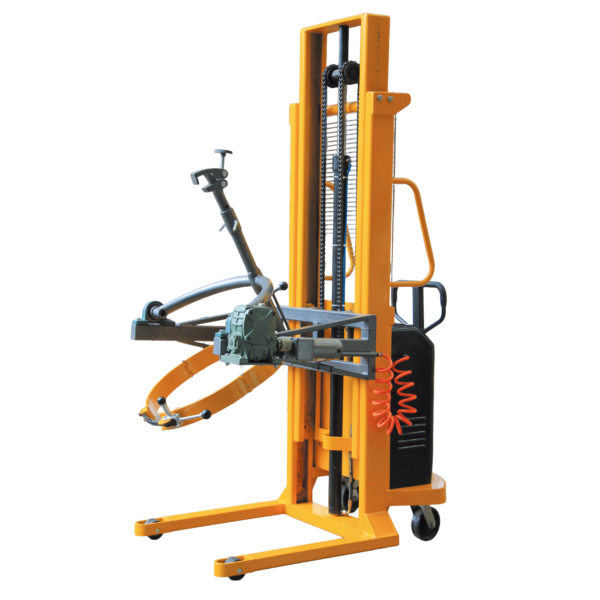

Warrior Semi Electric Drum Tipper with Weighscale – 450kg WLL
WAR-HE-DM-WRDA450AB-1
Warrior EcoWarrior semi-electric drum tipper with integrated weigh scale and 450kg WLL for powered lifting, rotating and pouring of steel, plastic and fibre drums. Features 180° electric drum tilting, two-stage vertical lift, 2,300mm maximum lift height and 120mm/s lifting speed. Ideal for repetitive drum handling, filling and emptying in industrial and commercial environments.
£5,240.00£6,288.00 Exc VATInc VAT
Description
Warrior Semi Electric Drum Tipper with Weigh Scale
The Warrior EcoWarrior Semi Electric Drum Tipper with Weigh Scale is a powered drum handling solution designed to lift, rotate and pour steel, plastic and fibre drums.
Featuring powered hydraulic lifting, electric drum tilting and an integrated weigh scale, the drum tipper provides controlled handling and pouring of drums in industrial and commercial environments.
With a 450kg lifting capacity and maximum lift height of 2,300mm, it is suitable for applications where drums need to be lifted and discharged at height.
Powered Drum Handling
The EcoWarrior Drum Tipper uses an electro-hydraulic and electro-mechanical system to provide powered lifting and drum rotation.
The two-stage vertical lift allows drums to be raised to the required working height, while the powered tipping mechanism provides controlled rotation for pouring and emptying.
Electric Drum Tilting
The dumper can rotate drums through 180° in approximately 30 seconds, providing controlled tipping for a range of drum-handling applications.
The powered system reduces the manual effort required to lift and rotate drums, making it particularly useful for repetitive handling operations.
Integrated Weigh Scale
An integrated weigh scale allows the weight of the drum and its contents to be monitored during handling.
This provides additional functionality where drum weights need to be checked as part of the handling or production process.
Drum Compatibility
The Warrior Semi Electric Drum Tipper is suitable for handling:
- Steel drums
- Plastic drums
- Fibre drums
Ideal Applications
Suitable for a range of industrial and commercial drum handling applications, including:
- Warehouses and distribution centres
- Manufacturing facilities
- Production environments
- Chemical and process industries
- Drum filling and emptying
- Drum pouring and discharge
- Material handling operations
- Repetitive drum handling
Technical Specifications
| Specification | Details |
| Product | Warrior Semi Electric Drum Tipper with Weigh Scale |
| Lifting Capacity | 450kg |
| Maximum Lift Height | 2,300mm |
| Drum Rotation | 180° / 30 seconds |
| Lifting Speed | 120mm/s |
| Size Between Legs (Inside/Outside) | 630 / 810mm |
| Overall Dimensions (L x W x H) | 1600 x 950 x 1920mm |
| Leg Length | 740mm |
| Load Roller | 80 x 55mm |
| Steering Wheel | 150 x 50mm |
| Turning Radius | 1,620mm |
| Lifting Motor | 1.6kW |
| Battery | 12V / 120Ah |
| Charger | 12V |
| Truck Weight | 343kg |
| Weigh Scale | Integrated |
Capacity & Load Information
The drum tipper has a maximum Working Load Limit of 450kg.
The total load, including the drum and its contents, must not exceed the rated capacity. Always ensure the drum is correctly positioned and secured before lifting or rotating.
Technical information
| Weight | 99.99 kg |
|---|
Key Features
- 450kg lifting capacity
- Powered drum lifting
- Electric drum tilting
- 180° drum rotation
- Two-stage vertical lift
- Integrated weigh scale
- Maximum lift height of 2,300mm
- Lifting speed of 120mm/s
- 12V / 120Ah battery
- 1.6kW lifting motor
- Suitable for steel, plastic and fibre drums
Safety & User Instructions
- Never exceed the 450kg maximum lifting capacity.
- Ensure the total drum and contents weight is within the rated capacity.
- Ensure drums are correctly positioned and securely retained before lifting.
- Check that the drum is suitable for the tipping and rotation operation.
- Keep personnel clear of the drum and its tipping path.
- Ensure adequate clearance before raising or rotating the drum.
- Take care around moving components and potential pinch points.
- Inspect the drum tipper, lifting system, rollers, battery and securing components before use.
- Do not use damaged or defective equipment.
- Ensure the unit is operated on a suitable and stable surface.
- Only trained and competent personnel should operate the equipment.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
