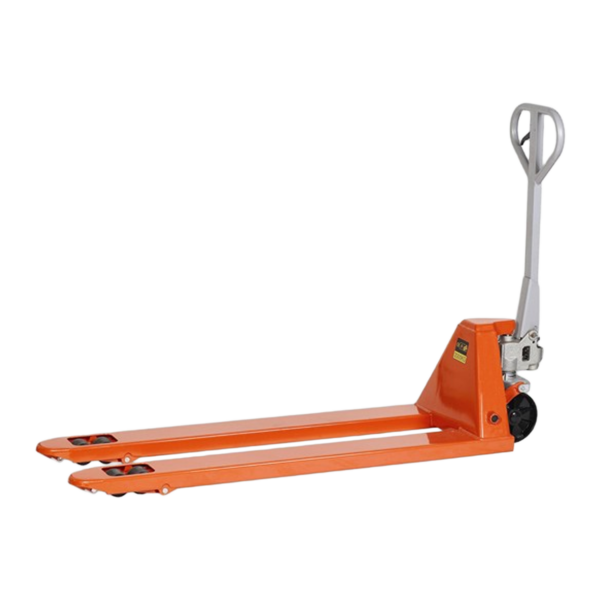

EcoWarrior Extra Long Pallet Truck – 2t WLL
WAR-HE-MPT-WRL20
The EcoWarrior Extra Long Pallet Truck is a heavy-duty manual pallet truck designed for long or non-standard pallets and loads. Available with 1,500mm, 1,800mm or 2,000mm fork lengths and 540mm or 685mm fork widths, it provides a practical solution for moving longer loads or multiple pallets efficiently.
From: £456.00£547.20 Exc VATInc VAT
Description
EcoWarrior Extra Long Pallet Truck
The EcoWarrior Extra Long Pallet Truck is designed for applications where standard pallet truck forks are not long enough. The extended forks allow operators to handle longer pallets, oversized loads or multiple pallets, helping reduce handling time and improve productivity.
With a 2,000kg Working Load Limit, robust hydraulics and heavy-duty components, the EcoWarrior provides a reliable solution for demanding warehouse, distribution and industrial environments.
Six configurations are available, combining three fork lengths with two fork widths.
Benefits of Extra Long Pallet Truck Forks
Extra long pallet truck forks provide greater reach and load support, making them ideal for handling oversized pallets, long loads and non-standard pallet configurations. The extended forks allow operators to support more of the load, helping to improve stability and making it easier to move larger or longer loads safely.
Compared with standard pallet truck forks, extra long forks can also offer greater versatility in demanding material handling applications. They are particularly useful where standard pallet trucks cannot provide sufficient fork length or load support, helping to reduce the need for multiple handling operations.
Heavy-Duty Construction
The pallet truck incorporates robust, proven hydraulic components with sealed hydraulics, self-lubricating bushes and full bushing in key areas for durability and reduced maintenance.
Climber wheels and entry/exit rollers help the pallet truck negotiate pallet entry points, while tandem nylon load rollers and steering wheels provide smooth movement.
Hydraulic & Load Protection
A pressure relief/overload valve helps protect the hydraulic system from excessive loads.
The three-position trigger provides controlled lifting, neutral and lowering functions, while integrated greasing points support routine maintenance.
Technical Specifications
| Specification | Available Options |
| Capacity | 2,000kg |
| Fork lengths | 1,500mm / 1,800mm / 2,000mm |
| Overall fork widths | 540mm / 685mm |
| Lowered fork height | 85mm |
| Raised fork height | 200mm |
| Distance between forks | 220mm |
| Steering wheels | 200 x 50mm |
| Load rollers | 80 x 70mm, tandem nylon |
| Hydraulics | Sealed |
| Control | 3-position trigger |
| Warranty | 12 months on site |
Choosing the Right Configuration
- 1,500mm forks
A good option where additional fork length is required for longer pallets or loads without moving to the longest configuration. - 1,800mm forks
Provides additional reach for larger or longer loads and applications where standard extended forks are insufficient. - 2,000mm forks
The longest option, designed for particularly long loads or applications where multiple pallets need to be handled together.
Available Configurations
| Fork Length | 540mm Wide | 685mm Wide | Pallet Compatibility |
| 1,500mm | Yes | Yes | Euro & UK / UK |
| 1,800mm | Yes | Yes | Euro & UK / UK |
| 2,000mm | Yes | Yes | Euro & UK / UK |
Ideal Applications
The EcoWarrior Extra Long Pallet Truck is suitable for:
- Long pallets
- Non-standard pallets
- Oversized loads
- Multiple pallet handling
- Warehouses
- Distribution centres
- Manufacturing facilities
- Industrial environments
- Logistics operations
- General material handling
- Applications requiring extended fork reach
Technical information
| Weight | N/A |
|---|---|
| Product Type | Pallet Truck |
| WLL | 2t |
| Length | 1500mm, 1800mm, 2000mm |
| Overall Fork Width | 685mm, 540mm |
Key Features
- 2,000kg maximum WLL
- 1,500mm, 1,800mm or 2,000mm fork lengths
- 540mm or 685mm overall fork widths
- Heavy-duty construction
- Robust proven hydraulics
- Long-life tandem nylon load rollers
- Nylon steering wheels
- Climber wheels
- Entry/exit rollers
- Sealed hydraulic system
- Self-lubricating bushes
- Full bushing in key areas
- Three-position control trigger
- Greasing points
- Pressure relief/overload valve
- 12-month on-site warranty
- CE marked
Safety & User Instructions
- Never exceed the 2,000kg maximum Working Load Limit.
- Ensure the load is suitable for the selected fork length and width.
- Position the forks fully beneath the load before lifting.
- Ensure loads are stable and evenly distributed.
- Take care when handling long or multiple pallets, particularly when turning or travelling.
- Check that the load does not obstruct the operator’s view or create an unsafe travel condition.
- Ensure there is adequate clearance around extended loads.
- Use only on suitable, stable surfaces.
- Inspect the forks, wheels, hydraulics and frame before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the pallet truck.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
