Warrior EcoWarrior Manual Drum Porter Override- 250kg WLL
WAR-HE-DM-WRDTR250
Warrior EcoWarrior manual drum porter override with 250kg WLL for lifting, moving and positioning drums on pallets. The override design rides over 800mm wide pallets, providing access to drums positioned towards the rear. Features 210mm manual hydraulic lift, overload valve, total-stop brakes and non-marking polyurethane wheels for efficient industrial and warehouse drum handling.
£364.00£436.80 Exc VATInc VAT
Description

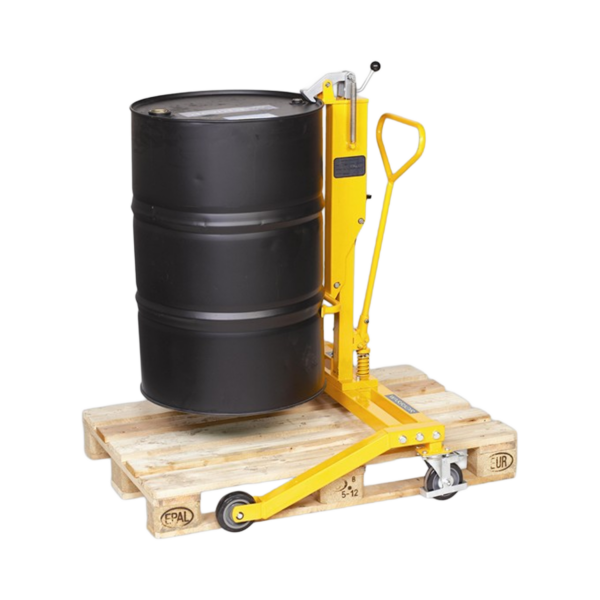

Warrior EcoWarrior Manual Drum Porter Override
The Warrior EcoWarrior Manual Drum Porter Override is a lightweight and manoeuvrable drum handling truck designed for moving and positioning drums in industrial and commercial environments.
The override design allows the porter to ride over an 800mm wide pallet, providing access to and allowing movement of drums positioned towards the rear of the pallet.
With a 250kg maximum WLL, manual hydraulic lifting and robust construction, the EcoWarrior Drum Porter Override provides a practical solution for routine drum handling.
Override Drum Handling
The unique override design allows the drum porter to ride over an 800mm wide pallet, making it possible to access and move drums positioned further back on the pallet.
This provides greater flexibility when handling multiple drums stored on pallets and reduces the need to manually reposition drums before lifting.
Manual Hydraulic Lifting
The porter features a hand-operated hydraulic pump for controlled lifting, with a maximum lift height of 210mm.
An infinitely adjustable dead-man hand release wheel allows controlled lowering of the load, while the integrated overload valve helps protect the hydraulic system against excessive loading.
Manoeuvrability & Braking
The high push/pull handlebar provides easy control when positioning the drum porter.
Total-stop brakes are fitted as standard to help prevent unwanted movement when the unit is stationary.
Non-marking polyurethane tyres help minimise floor damage, while swivel wheels are fitted with foot guards for additional protection.
Ideal Applications
Suitable for drum handling in:
- Warehouses and distribution centres
- Manufacturing facilities
- Industrial environments
- Production areas
- Goods handling areas
- Drum storage and movement
- Palletised drum handling
- Handling drums positioned towards the rear of pallets
Technical Specifications
| Specification | Details |
| Product | Warrior EcoWarrior Manual Drum Porter Override |
| Maximum WLL | 250kg |
| Lift Height | 210mm |
| Maximum Drum Height | 1,180mm |
| Minimum Drum Height | 910mm |
| Maximum Drum Diameter | 572mm |
| Inside Straddle | 850mm |
| Outside Overall Straddle | 980mm |
| Weight | 50kg |
| Operation | Manual hydraulic |
| Wheels | Non-marking polyurethane |
| Finish | Epoxy powder coated |
| Brakes | Total-stop brakes |
Capacity & Load Information
The Drum Porter Override has a maximum Working Load Limit of 250kg.
Ensure the total weight of the drum and its contents does not exceed the rated capacity. Check that the drum dimensions and pallet arrangement are suitable before lifting
Technical information
| Weight | 99.99 kg |
|---|---|
| Product Type | Drum Porter |
Key Features
- 250kg maximum WLL
- Override design rides over 800mm wide pallets
- Suitable for rear drum access
- Manual hydraulic lifting
- 210mm lift height
- Infinitely controlled dead-man release wheel
- Overload valve
- Total-stop brakes
- Non-marking polyurethane tyres
- Swivel wheels with foot guards
- High push/pull handlebar
- Robust and reliable construction
- Durable epoxy powder-coated finish
- Test certificate available on request
- 12-month on-site warranty
Safety & User Instructions
- Never exceed the 250kg maximum WLL.
- Ensure the drum is securely supported before lifting or moving.
- Check that the drum diameter and height are compatible with the porter.
- Ensure the porter is correctly positioned around the drum and pallet before lifting.
- Ensure the pallet is stable before the porter rides underneath or over it.
- Engage the total-stop brakes when the porter is stationary.
- Keep feet and hands clear of the straddle, wheels and moving components.
- Use the dead-man release wheel to lower loads in a controlled manner.
- Inspect the hydraulic system, wheels, brakes, frame and drum handling components before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the drum porter.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
