EcoWarrior Manual Drum Porter- 250kg WLL
WAR-HE-DM-WRDT250

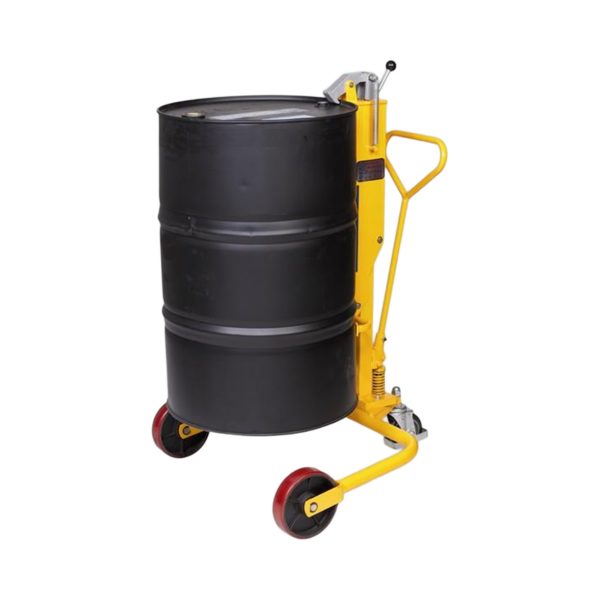

EcoWarrior Manual Drum Porter is a lightweight, manoeuvrable drum handling truck with manual hydraulic lifting and a 245mm lift height. Weighing just 42kg, it features overload protection, total-stop brakes and non-marking polyurethane wheels for easy drum movement in warehouses, workshops and industrial environments.
£379.00£454.80 Exc VATInc VAT
Description
EcoWarrior Manual Drum Porter
The EcoWarrior Manual Drum Porter is a lightweight and highly manoeuvrable drum handling solution designed for moving and positioning drums in industrial and commercial environments.
With a 250kg maximum WLL, manual hydraulic lifting and a compact design, the Drum Porter provides a straightforward solution for routine drum handling where powered equipment is not required.
Manual Hydraulic Lifting
The Drum Porter is raised using a hand-operated hydraulic pump, providing controlled lifting with a maximum lifting height of 245mm.
An infinitely controlled dead-man hand release wheel allows the load to be lowered smoothly and under control, while an integrated overload valve helps protect the hydraulic system against excessive loading.
Lightweight & Manoeuvrable
Weighing just 42kg, the EcoWarrior Drum Porter is designed to be easy to manoeuvre and position.
The high push/pull handlebar provides good operator control, while non-marking polyurethane tyres help minimise floor damage. Swivel wheels are fitted with foot guards for additional protection.
Braking & Construction
Total-stop brakes are fitted as standard to help prevent unwanted movement when the drum porter is stationary.
The unit features robust construction with an epoxy powder-coated finish for durability and is designed for long service with minimal maintenance.
Ideal Applications
Suitable for drum handling in:
- Warehouses
- Workshops
- Manufacturing facilities
- Production areas
- Industrial environments
- Drum storage areas
- Goods handling areas
- General drum movement and positioning
Technical Specifications
| Specification | Details |
| Product | EcoWarrior WRDT250 Drum Porter |
| Maximum WLL | 250kg |
| Lifting Height | 245mm |
| Lifting Height per Stroke | 22mm |
| Maximum Drum Diameter | 572mm |
| Maximum Drum Height | 915mm |
| Maximum Height When Raised | 1,215mm |
| Length | 810mm |
| Width | 780mm |
| Inside Leg Width | 630mm |
| Net Weight | 42kg |
| Operation | Manual hydraulic |
| Wheels | Non-marking polyurethane |
| Finish | Epoxy powder coated |
| Brakes | Total-stop brakes |
Capacity & Load Information
The Drum Porter has a maximum Working Load Limit of 250kg.
Ensure the combined weight of the drum and its contents does not exceed the rated capacity. Check that the drum dimensions are compatible with the porter before lifting.
Drum Compatibility
The Drum Porter can accommodate drums up to 572mm in diameter and 915mm in height.
Ensure the drum is correctly positioned and securely supported by the porter before lifting or moving.
Technical information
| Weight | 99.99 kg |
|---|
Key Features
- 250kg maximum WLL
- Lightweight 42kg design
- Manual hydraulic lifting
- 245mm lifting height
- Dead-man controlled lowering
- Overload valve
- Total-stop brakes
- Non-marking polyurethane tyres
- Swivel wheels with foot guards
- High push/pull handlebar
- Robust and reliable construction
- Durable epoxy powder-coated finish
- Test certificate available on request
- 12-month on-site warranty
Safety & User Instructions
- Never exceed the 250kg maximum WLL.
- Ensure the drum is securely supported before lifting or moving.
- Check that the drum dimensions are compatible with the porter.
- Ensure the porter is correctly positioned before lifting.
- Engage the total-stop brakes when the unit is stationary.
- Keep feet and hands clear of the legs, wheels and moving components.
- Use the dead-man release wheel to lower loads in a controlled manner.
- Inspect the hydraulic system, wheels, brakes, frame and drum handling components before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the Drum Porter.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
