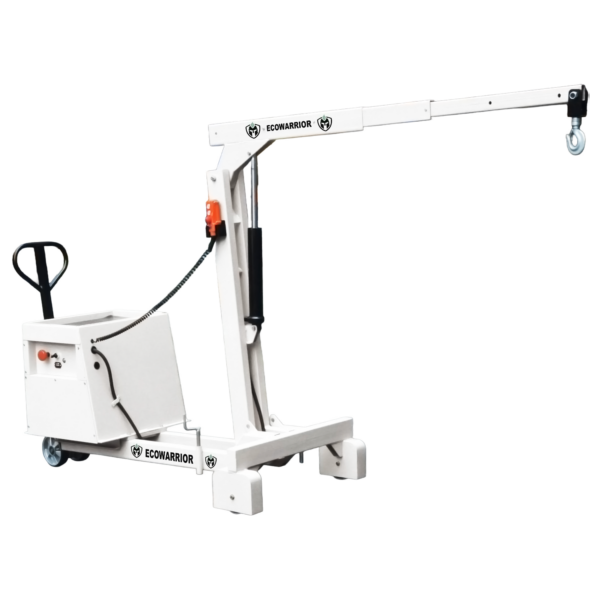

Warrior EcoWarrior Semi-Electric Mobile Jib Crane – 550kg WLL
WAR-HE-EC-WRSETSB550
Warrior EcoWarrior semi-electric mobile crane with 550kg WLL, 5-position telescopic jib and 150–550kg variable capacities. Electrohydraulic lifting, manual propulsion, 12V/60Ah battery, swivel safety hook and pressure relief valve. CE marked for workshop and industrial lifting.
£2,756.00£3,307.20 Exc VATInc VAT
Description
Warrior EcoWarrior Semi-Electric Heavy-Duty Mobile Crane
The Warrior EcoWarrior Semi-Electric Heavy-Duty Mobile Crane is a freestanding, counterbalanced workshop crane designed for efficient lifting in restricted or confined spaces.
With a 550kg maximum capacity, the crane features a 5-position telescopic jib providing five variable capacity settings. The unit is manually propelled with electrohydraulic lifting, combining easy manoeuvrability with powered load lifting.
A heavy-duty swivel hook with safety catch provides secure load attachment, while the built-in pressure relief valve helps protect against overloading.
Semi-Electric Mobile Crane
The EcoWarrior crane is designed for manual movement and electric lifting, providing a practical solution for workshop and industrial lifting applications.
Its counterbalanced, free-standing design allows the crane to be positioned where required without permanent installation, making it particularly useful in areas where space and manoeuvrability are important.
5-Position Telescopic Jib
The 5-position telescopic jib provides five different capacity settings.
As the jib is extended, the maximum lifting capacity decreases. This allows the crane to provide greater reach when required while maintaining clearly defined safe working capacities.
Electrohydraulic Lifting
The crane uses an electrohydraulic lifting system powered by a 12V / 60Ah lead-acid battery.
An external 12V/8Ah charger is supplied for recharging, while the pressure relief valve helps prevent hydraulic overloading.
Ideal Applications
Suitable for a wide range of manual and powered lifting applications, including:
- Workshops and maintenance areas
- Manufacturing facilities
- Engineering environments
- Machinery maintenance
- Plant and equipment handling
- Restricted working areas
- General industrial lifting
Technical Specifications
| Specification | Details |
| Product | Warrior EcoWarrior Semi-Electric Heavy-Duty Mobile Crane |
| Maximum Capacity | 550kg |
| Capacity 1 – 925mm | 550kg |
| Capacity 2 – 1,210mm | 400kg |
| Capacity 3 – 1,500mm | 300kg |
| Capacity 4 – 1,800mm | 220kg |
| Capacity 5 – 2,080mm | 150kg |
| Maximum Capacity at Full Clear Reach | 150kg |
| Maximum Lift Height | 2,600mm |
| Overall Dimensions (W x H) | 910 x 1510mm |
| Chassis Dimensions (L x W) | 1650 x 910mm |
| Handle Height | 1,210mm |
| Battery | 12V / 60Ah lead acid |
| Charger | 12V / 8Ah external |
| Power | 0.8kW / 12V |
| Lifting System | Electrohydraulic |
| Movement | Manual |
| Jib | 5-position telescopic |
| Hook | Swivel hook with safety catch |
| Certification | CE marked |
Capacity & Load Information
The maximum capacity is 550kg at a 925mm reach. The permissible capacity reduces as the jib is extended.
Never assume the 550kg maximum capacity applies at every reach. Always check the rated capacity for the selected jib position before lifting.
Technical information
| Weight | 99.99 kg |
|---|
Key Features
- 550kg maximum capacity
- Counterbalanced free-standing design
- 5-position telescopic jib
- 5 variable capacity settings
- Electrohydraulic lifting
- Manually propelled
- Heavy-duty swivel hook with safety catch
- Pressure relief valve to help prevent overloading
- 12V / 60Ah lead-acid battery
- External charger
- Maximum lift height of 2,600mm
- Compact and manoeuvrable design
- CE marked
Safety & User Instructions
- Never exceed the rated capacity for the selected jib position.
- Check the applicable WLL before every lift.
- Ensure the crane is positioned on a suitable, stable and level surface.
- Ensure the load is correctly secured to the swivel hook and safety catch.
- Do not exceed the specified jib position, reach or lift height.
- Keep personnel clear of suspended loads and the crane’s operating area.
- Take care when manually manoeuvring the crane with a suspended load.
- Inspect the jib, hydraulic system, hook, battery, wheels and structure before use.
- Do not use damaged or defective equipment.
- Ensure the battery is adequately charged before operation.
- Only trained and competent personnel should operate the crane.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
