Warrior WRSPP360-2000 Auto Pallet Leveller – 2t WLL

Description

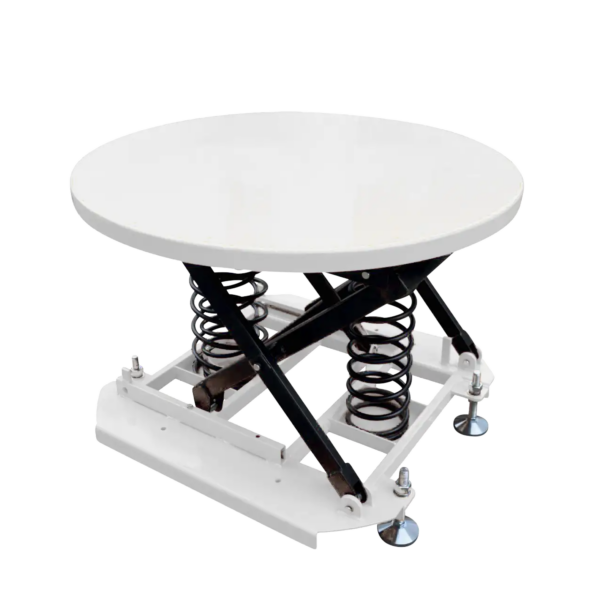

Warrior EcoWarrior WRSPP360-2000 Auto Pallet Leveller

The Warrior EcoWarrior WRSPP360-2000 Auto Pallet Leveller is a self-levelling lift table and pallet positioner designed to improve manual handling and reduce bending, reaching and unnecessary movement when loading or unloading pallets.

With a 2,000kg maximum WLL, automatic self-levelling operation and a 360° rotating turntable, the pallet leveller keeps goods at a more convenient working height while allowing operators to rotate the pallet rather than repeatedly walking around it.

Three springs with four configuration combinations provide flexibility for different load profiles. Integrated fork pockets also allow the unit to be relocated using suitable forklift equipment.

Automatic Self-Levelling Operation

The spring-operated platform automatically responds as goods are added to or removed from the pallet, helping maintain a more ergonomic working height without manual adjustment.

The platform has a 241mm lowered height and can rise to 705mm, making palletised goods easier to access during repetitive loading, picking and packing operations.

360° Rotating Turntable

The 1,107mm diameter rotating top allows palletised goods to be turned through 360°.

This helps operators bring products towards them instead of repeatedly walking around the pallet, reducing unnecessary reaching, twisting and movement.

Adjustable Spring Configurations

The WRSPP360-2000 uses three springs with four configuration combinations, allowing the leveller to be matched to different load profiles.

Load parameters must be provided when ordering so the correct spring configuration can be supplied.

Fork Pockets

Integrated fork pockets allow the pallet leveller to be moved using suitable forklift equipment, providing greater flexibility when relocating the unit between workstations or storage areas.

Ergonomic Pallet Handling

The EcoWarrior pallet leveller is designed to support safer and more comfortable manual handling by helping to:

• Reduce bending to access low-level goods
• Reduce reaching and twisting
• Minimise unnecessary walking around pallets
• Keep goods at a more accessible working height
• Improve efficiency during repetitive pallet handling

Ideal Applications

Suitable for a wide range of pallet handling and manual handling environments, including:

• Warehouses and distribution centres
• Manufacturing and production facilities
• Packing and order picking areas
• Logistics and goods handling
• Assembly areas and stockrooms
• Manual pallet loading and unloading

Technical Specifications

Product:Warrior EcoWarrior WRSPP360-2000 Auto Pallet Leveller
Maximum WLL: 2,000kg
Product Type: Automatic self-levelling lift table / pallet positioner
Turntable: 360° rotating
Turntable Diameter: 1,107mm
Lowered Height: 241mm
Raised Height: 705mm
Overall Dimensions: 1422 x 1270 x 1829mm
Base Dimensions: 920 x 930mm
Spring System: 3 springs
Spring Configurations: 4 combinations
Fork Pockets: Yes
Finish: Powder coated
Optional Extra: Self-levelling feet
Colour: Traffic White
Standards: EU / UK / ISO standards

Capacity and Load Configuration

The WRSPP360-2000 has a maximum Working Load Limit of 2,000kg.

The three-spring system can be configured in four combinations to suit different load profiles. Accurate load parameters must be provided when ordering to ensure the appropriate configuration is supplied.

The pallet leveller must always be operated within its stated WLL and configured correctly for the intended load.

Working Height

The automatic self-levelling platform operates between 241mm lowered – 705mm raised.

The spring system responds to changes in the load to help maintain a convenient working height throughout the loading or unloading process.

Colour and Finish

Supplied in Traffic White with a durable powder-coated finish suitable for industrial working environments.

Please Note: Self-levelling feet are available as an optional extra.
