Warrior EcoWarrior Counterbalanced Manual Crane – 550kg WLL
WAR-HE-MC-WRTSB550
Warrior EcoWarrior counterbalanced manual mobile crane with up to 550kg WLL and 5-position telescopic jib for flexible lifting in restricted spaces. Features variable capacities from 150–550kg, double-acting hand hydraulic pump, swivel safety hook and pressure relief valve. Free-standing and mobile, with up to 1,600mm clear reach and 2,900mm lift height for workshops, maintenance and industrial applications.
£1,924.00£2,308.80 Exc VATInc VAT
Description
Warrior EcoWarrior Counterbalanced Manual Crane

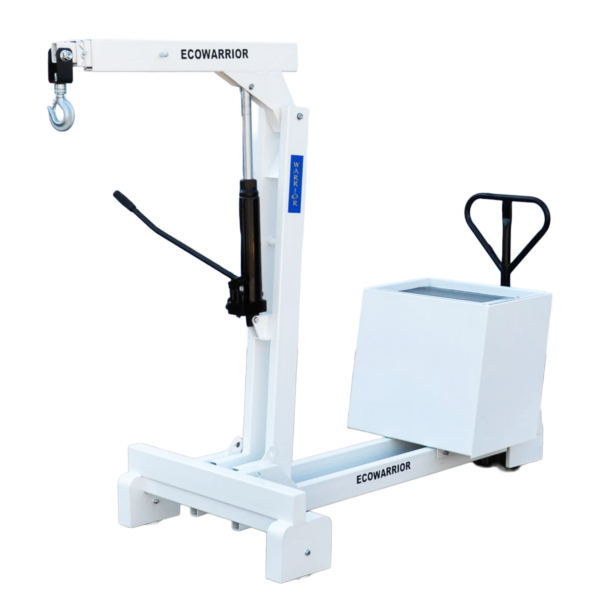

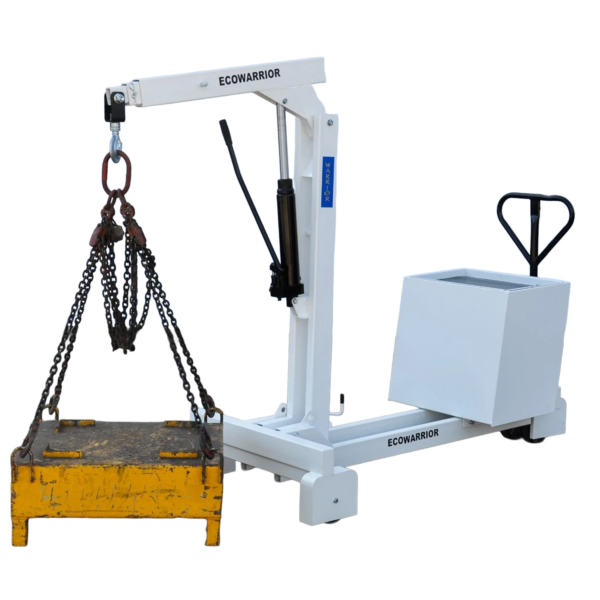

The Warrior EcoWarrior Counterbalanced Manual Mobile Crane is a free-standing workshop crane designed for precise lifting in restricted or confined spaces.
Its built-in counterbalance and 5-position telescopic jib provide five variable capacity settings, allowing the crane to be configured for different lifting requirements and reach positions.
A double-acting hand hydraulic pump provides controlled manual lifting, while the heavy-duty swivel hook with safety catch helps secure the load during operation.
Counterbalanced Manual Crane
The free-standing counterbalanced design provides stability without requiring the crane to be fixed to the floor.

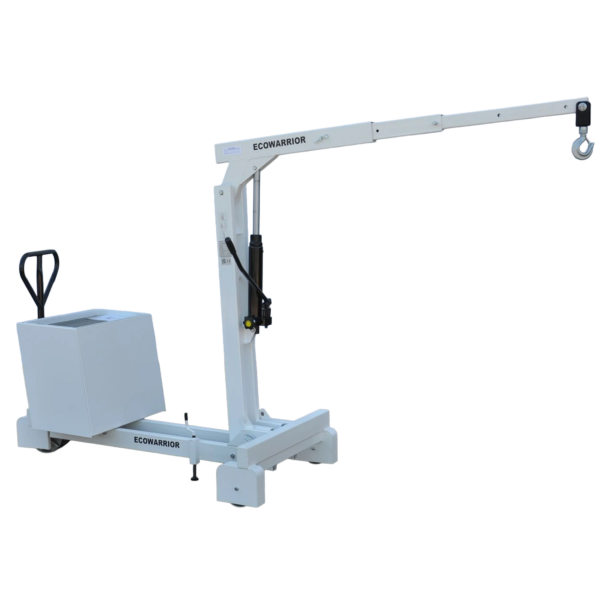

The 5-position telescopic jib allows the operator to adjust the lifting capacity and reach to suit the application, making the crane particularly useful where space is restricted or manoeuvrability is important.
Hydraulic Lifting System
The crane features a double-acting hand hydraulic pump unit for manual lifting and controlled positioning of loads.
A built-in pressure relief valve helps prevent overloading by limiting the hydraulic system pressure.
Variable Capacity & Reach
The crane’s lifting capacity varies according to the jib position:
- 550kg – minimum jib position
- 500kg – jib position 2
- 450kg – jib position 3
- 400kg – jib position 4
- 350kg – maximum jib extension
- 150kg – full clear reach
Maximum clear reach in front of the wheels is 1,600mm, with a maximum lift height of 2,900mm.
Ideal Applications
Suitable for a wide range of manual lifting applications, including:
- Workshops and maintenance areas
- Manufacturing facilities
- Machinery maintenance
- Engineering environments
- Plant and equipment handling
- Restricted or confined working areas
- General industrial lifting
Technical Specifications
| Specification | Details |
| Product | Warrior EcoWarrior Counterbalanced Manual Mobile Crane |
| Maximum Capacity | 550kg |
| Capacity – Jib Position 2 | 500kg |
| Capacity – Jib Position 3 | 450kg |
| Capacity – Jib Position 4 | 400kg |
| Capacity – Maximum Extension | 350kg |
| Capacity – Full Clear Reach | 150kg |
| Maximum Clear Reach | 1,600mm |
| Maximum Lift Height | 2,900mm |
| Overall Dimensions (L x W x H) | 2100 x 1050 x 1760mm |
| Chassis Dimensions (L x W x H) | 1650 x 910 x 1730mm |

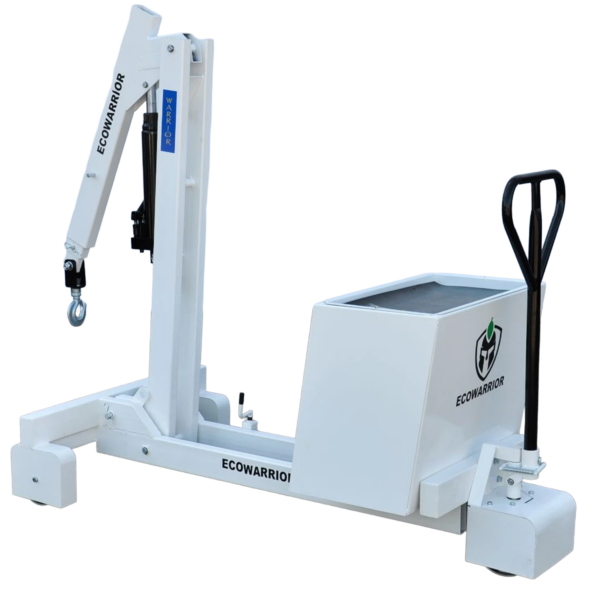

| Overall Folded Height | 870mm |
| Jib | 5-position telescopic |
| Pump | Double-acting hand hydraulic |
| Hook | Swivel hook with safety catch |
| Certification | CE marked |

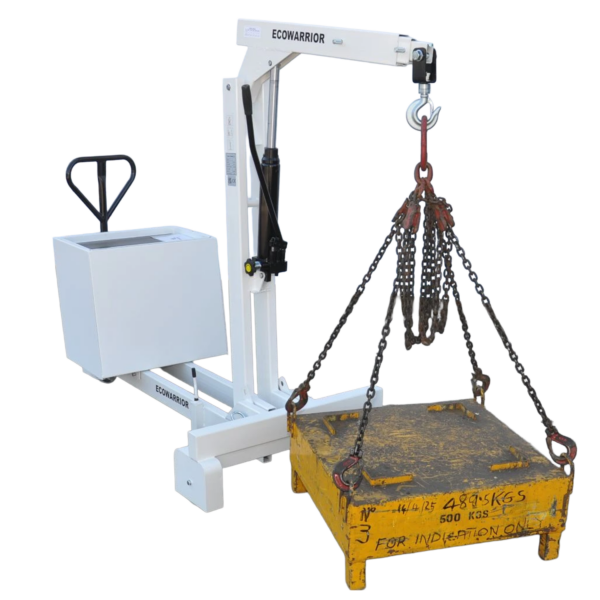

Capacity & Load Information
The crane’s capacity depends on the selected jib position. Never assume the maximum 550kg capacity applies at every reach.
The further the jib is extended, the lower the permissible lifting capacity becomes. Always check the applicable capacity for the selected jib position before lifting.
Technical information
| Weight | 99.99 kg |
|---|---|
| Product Type | Mobile Jib Crane |
| WLL | 550kg |
Key Features
- 550kg maximum capacity
- Counterbalanced free-standing design
- 5-position telescopic jib
- 5 variable capacity settings
- Double-acting hand hydraulic pump
- Heavy-duty swivel hook with safety catch
- Pressure relief valve to help prevent overloading
- Maximum clear reach of 1,600mm
- Maximum lift height of 2,900mm
- Compact folded height of 870mm
- CE marked
Safety & User Instructions
- Never exceed the rated capacity for the selected jib position.
- Maximum capacity is 550kg at the minimum jib position.
- Check the load capacity before each lift, particularly when extending the jib.
- Ensure the crane is positioned on a suitable, stable and level surface.
- Ensure the load is correctly secured to the swivel hook and safety catch.
- Do not exceed the maximum specified reach or lift height.
- Keep personnel clear of suspended loads and the crane’s operating area.
- Do not use the crane to lift loads beyond its rated capacity.
- Inspect the jib, hydraulic system, hook, wheels and structure before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the crane.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
