Warrior Manual Drum PorterPlus- 450kg WLL
WAR-HE-DM-WRDTF450
Warrior EcoWarrior Manual Drum Porter Plus with 450kg WLL for handling steel, plastic and fibre drums. Specialist straddle legs provide corner access to drums on pallets and bunds, while the foot-operated hydraulic pump delivers controlled lifting with a 500mm stroke. Features overload protection, total-stop brakes and non-marking polyurethane wheels for industrial drum handling.
£1,214.00£1,456.80 Exc VATInc VAT
Description

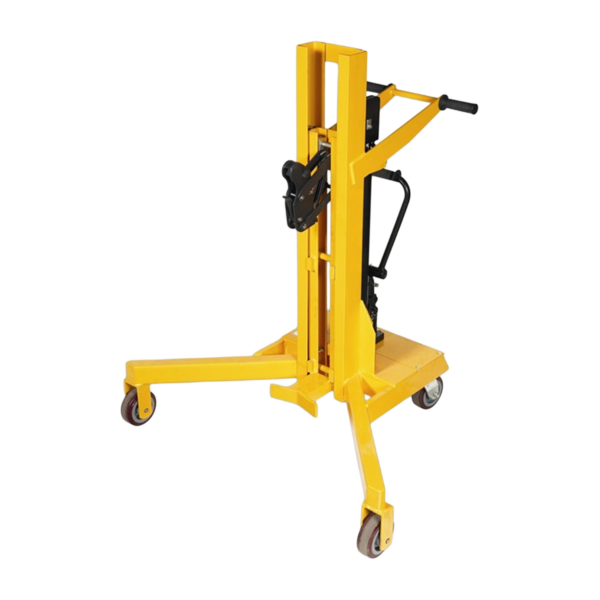

Warrior EcoWarrior Manual Drum Porter Plus
The Warrior EcoWarrior Drum Porter Plus WRDTF450 is a heavy-duty manual drum lifter designed for moving steel, plastic and fibre drums on and off pallets, storage bunds and other working areas.
With a 450kg maximum WLL and specially designed straddle legs, the Drum Porter Plus can approach drums from the corners of a pallet or bund, allowing access to up to four drums from different corners.
Heavy-Duty Drum Handling
The WRDTF450 is designed for lifting and positioning heavy drums where access around pallets or bunds is restricted.
Its special straddle configuration allows the operator to approach drums from the corners, providing greater flexibility when handling multiple drums on a pallet or bund.
The unit is suitable for both open and closed-top steel, plastic and fibre drums.
Manual Hydraulic Lifting
The Drum Porter Plus uses a foot-operated hydraulic pump to provide controlled lifting, with a 500mm lifting stroke.
An infinitely controlled dead-man hand release wheel allows the load to be lowered smoothly and safely.
An integrated overload valve helps protect the hydraulic system against excessive loading.
Manoeuvrability & Braking
The high push/pull handlebar provides easy control when positioning the drum porter.
Total-stop brakes are fitted as standard to prevent unwanted movement when the unit is stationary.
Non-marking polyurethane tyres help protect floors, while swivel wheels are fitted with foot guards.
Ideal Applications
Suitable for drum handling in:
- Warehouses and distribution centres
- Manufacturing facilities
- Industrial environments
- Production areas
- Drum storage and handling
- Palletised drum handling
- Storage bunds
- Drum loading and unloading
Technical Specifications
| Specification | Details |
| Product | EcoWarrior Drum Porter Plus WRDTF450 |
| Maximum WLL* | 450kg |
| Lifting Stroke | 500mm |
| Lifting per Stroke | 12mm |
| Maximum Drum Diameter | 572mm |
| Maximum Drum Height | 915mm |
| Maximum Height – Lowered Position | 1,250mm |
| Maximum Height – Raised Position | 1,380mm |
| Length | 900mm |
| Width | 1,020mm |
| Net Weight | 165kg |
| Operation | Manual hydraulic |
| Pump | Foot operated |
| Wheels | Non-marking polyurethane |
| Finish | Epoxy powder coated |
| Brakes | Total-stop brakes |
Capacity & Load Information
The supplied specifications state a maximum Working Load Limit of 450kg.
Always ensure the combined weight of the drum and its contents does not exceed the confirmed rated capacity. Check that the drum dimensions are compatible with the porter before lifting.
Technical information
| Weight | 99.99 kg |
|---|---|
| Product Type | Drum Porter |
| WLL | 450kg |
Key Features
- 450kg maximum WLL
- Heavy-duty drum handling design
- Suitable for steel, plastic and fibre drums
- Suitable for open and closed-top drums
- Special straddle legs for corner access
- Manual hydraulic lifting
- Foot-operated pump
- 500mm lifting stroke
- Infinitely controlled dead-man release wheel
- Overload valve
- Total-stop brakes
- Non-marking polyurethane tyres
- Swivel wheels with foot guards
- High push/pull handlebar
- Durable epoxy powder-coated finish
- Test certificate available on request
- 12-month on-site warranty
Safety & User Instructions
- Never exceed the confirmed maximum WLL.
- Ensure the drum is securely supported before lifting or moving.
- Check that the drum diameter and height are compatible with the porter.
- Ensure the straddle legs are correctly positioned around the drum before lifting.
- Take care when approaching drums positioned on pallets or bunds.
- Engage the total-stop brakes when the porter is stationary.
- Keep feet and hands clear of the straddle, wheels and moving components.
- Use the dead-man release wheel to lower loads in a controlled manner.
- Inspect the hydraulic system, lifting mechanism, wheels, brakes and frame before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the drum porter.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
