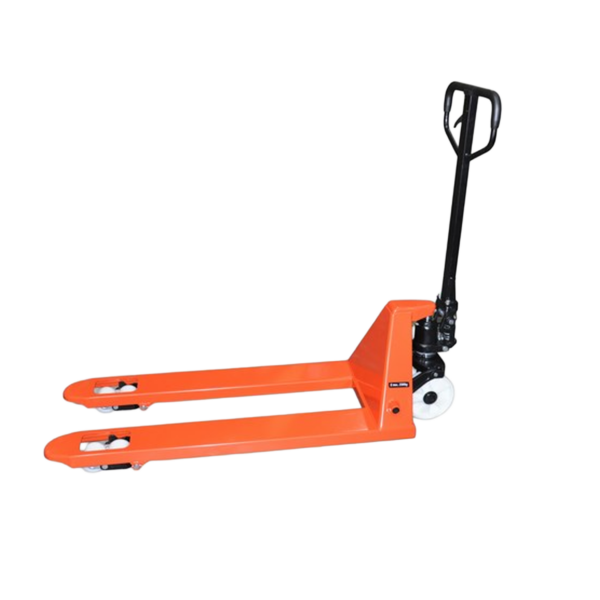

EcoWarrior Hand Pallet Truck Tandem Nylon Rollers – 2.5t WLL
WAR-HE-MPT-WR25
EcoWarrior 2.5t hand pallet truck with nylon tandem rollers, sealed hydraulics and multiple fork sizes for versatile pallet handling.
From: £208.00£249.60 Exc VATInc VAT
Description
EcoWarrior Hand Pallet Truck Tandem Nylon
The EcoWarrior 2500kg Hand Pallet Truck Tandem Nylon range is designed for reliable and efficient manual handling across warehouses, factories, workshops, storage facilities and logistics operations.
With a 2,500kg Working Load Limit, these robust hand pallet trucks combine sealed hydraulics, self-lubricating bushes and long-life nylon wheels to provide smooth, dependable pallet handling. Available with a range of fork lengths and widths, the range includes compact models for specialist applications alongside standard Euro and UK pallet configurations.
The pallet trucks feature a 3-position operating trigger, pressure relief/overload protection, climber wheels and sealed hydraulics, providing straightforward and controlled operation in demanding working environments.
Heavy Duty Manual Pallet Handling
The EcoWarrior Hand Pallet Truck uses a manually operated hydraulic pump to raise loads, with a 3-position trigger providing control over lifting, neutral and lowering functions.
The robust hydraulic system is sealed to help protect internal components from contamination, while self-lubricating bushes and full bushing in key areas help reduce maintenance requirements.
The range is available with fork lengths from 800mm to 1,220mm and overall fork widths from 450mm to 685mm, allowing the appropriate configuration to be selected for different pallet sizes and handling requirements.
Nylon Wheels & Tandem Rollers
The trucks are fitted with long-life nylon steer wheels and load rollers, providing durable performance for general industrial and warehouse applications.
Selected models feature tandem load rollers, helping distribute the load and providing improved stability when handling pallets. Climber wheels and entry/exit rollers assist with positioning the forks beneath pallets.
Pallet & Application Options
The range includes configurations suitable for both Euro and UK pallets, with wider 685mm models designed for UK pallet applications.

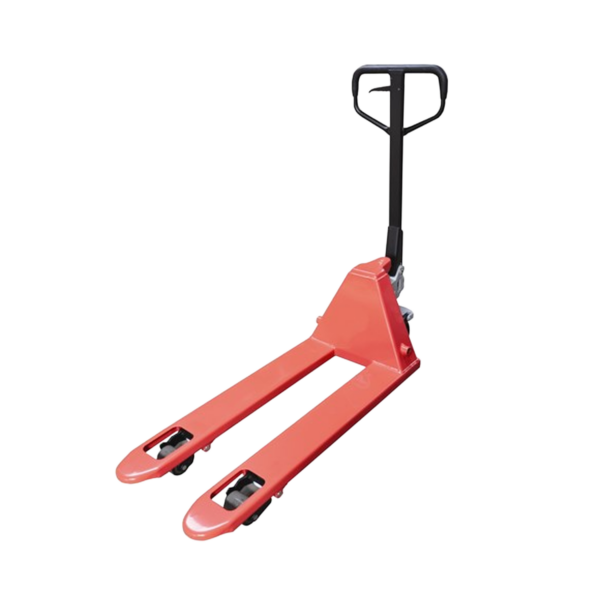

The shorter 800mm and 900mm fork models provide a compact solution for specialist handling requirements, including printer and other restricted-access applications.
The 1,000mm, 1,150mm and 1,220mm fork options provide additional flexibility for different pallet and load dimensions.
Ideal Applications
Suitable for a wide range of manual material handling applications, including:
- Warehouses and distribution centres
- Logistics and storage facilities
- Manufacturing and production environments
- Workshops and industrial facilities
- General pallet handling
- Euro pallet handling
- UK pallet handling
- Specialist narrow or restricted pallet applications
- Printer and equipment handling
- Moving pallets over short and medium distances
Technical Specifications
| Model | Capacity | Lowered Fork Height | Raised Fork Height | Fork Length | Overall Fork Width | Distance Between Forks | Pallet Compatibility | Roller Configuration |
| WR25VS80TNN | 2,500kg | 85mm | 200mm | 800mm | 450mm | 130mm | Specialist / narrow applications | Tandem nylon |
| WR25VS90TNN | 2,500kg | 85mm | 200mm | 900mm | 450mm | 130mm | Specialist / narrow applications | Tandem nylon |
| WR25S100TNN | 2,500kg | 85mm | 200mm | 1,000mm | 540mm | 220mm | Euro & UK | Tandem nylon |
| WR25S115TNN | 2,500kg | 85mm | 200mm | 1,150mm | 540mm | 220mm | Euro & UK | Tandem nylon |
| WR25L100TNN | 2,500kg | 85mm | 200mm | 1,000mm | 685mm | 365mm | UK | Tandem nylon |
| WR25L115TNN | 2,500kg | 85mm | 200mm | 1,150mm | 685mm | 365mm | UK | Tandem nylon |
| WR25S122TNN | 2,500kg | 85mm | 200mm | 1,220mm | 540mm | 220mm | Euro & UK | Tandem nylon |
| WR25L122TNN | 2,500kg | 85mm | 200mm | 1,220mm | 685mm | 365mm | UK | Tandem nylon |
Additional Specifications
| Specification | Details |
| Maximum WLL | 2,500kg |
| Individual Fork Dimensions | 160 x 50mm |
| Steering Wheel Dimensions | 200 x 50mm |
| Standard Load Roller Dimensions | 80 x 70mm |
| Lowered Fork Height | 85mm |
| Raised Fork Height | 200mm |
| Operation | Manual hydraulic |
| Hydraulic System | Sealed |
| Protection | Pressure relief/overload valve |
| Operating Control | 3-position trigger |
| Warranty | 12 months on site |
| Standard Finish | Orange |
| Conformity | BS EN 1757-2:2001 specified |
Capacity & Load Information
The EcoWarrior Hand Pallet Truck range has a maximum Working Load Limit of 2,500kg.
The rated capacity applies to loads positioned within the appropriate load centre and correctly supported by the forks. The load should be evenly distributed across the forks and must not exceed the capacity of the selected model.
Always check the individual model’s fork dimensions and pallet compatibility before use, particularly when handling non-standard, narrow or specialist pallets.
Technical information
| Product Type | Pallet Truck |
|---|---|
| WLL | 2.5t |
| Fork Length | 800mm, 900mm, 1000mm, 1150mm, 1220mm |
| Overall Fork Width | 450mm, 540mm, 685mm |
| Pallet Compatibility | Specialist / Narrow Applications, Euro & UK, UK |
Key Features
- 2,500kg maximum Working Load Limit
- Heavy-duty manual pallet truck
- Fork lengths from 800mm to 1,220mm
- Overall fork widths from 450mm to 685mm
- Long-life nylon steer wheels and load rollers
- Tandem nylon rollers on applicable models
- Robust, proven hydraulic system
- Sealed hydraulics
- 3-position operating trigger
- Climber wheels
- Entry and exit rollers
- Full bushing in key areas
- Self-lubricating bushes
- Greasing points
- Pressure relief/overload valve
- Individual fork dimensions of 160 x 50mm
- 200 x 50mm steering wheels
- 80 x 70mm load rollers on tandem models
- BS EN 1757-2:2001 conformity specified
- 12-month on-site warranty
- Available in orange, with selected models also available in blue
Safety & User Instructions
- Never exceed the 2,500kg maximum WLL.
- Ensure the load is suitable for the selected pallet truck configuration.
- Position loads evenly across the forks wherever possible.
- Ensure the forks are fully inserted beneath the pallet before lifting.
- Do not lift loads that are unstable, unsecured or unevenly distributed.
- Keep personnel clear of the pallet truck and its load during movement.
- Take care around pinch points, wheels, forks and other moving components.
- Do not allow personnel to stand on the forks or raised load.
- Do not use the pallet truck to transport or lift people.
- Operate the truck on a suitable, stable and reasonably level surface.
- Do not exceed the manufacturer’s recommended operating conditions.
- Inspect the forks, wheels, rollers, hydraulic system, trigger and frame before use.
- Check for hydraulic leaks or damaged components before operation.
- Do not use damaged or defective equipment.
- Ensure the pressure relief/overload protection system is functioning correctly.
- Keep the hydraulic system and moving components suitably maintained.
- Only trained and competent personnel should operate the equipment.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
