Warrior Rotating Pallet Disc -1.8t WLL
EPE-HE-PD-WRMT002
Warrior EcoWarrior Pal-Disc rotating pallet disc with 1,800kg WLL and full 360° rotation for efficient pallet wrapping, sealing and handling. Its low-profile 23mm height allows loading with manual or powered pallet trucks, while the ramped edge and foot-operated locking device provide easy and controlled pallet positioning. Compact and virtually maintenance free.
£1,115.00£1,338.00 Exc VATInc VAT
Description

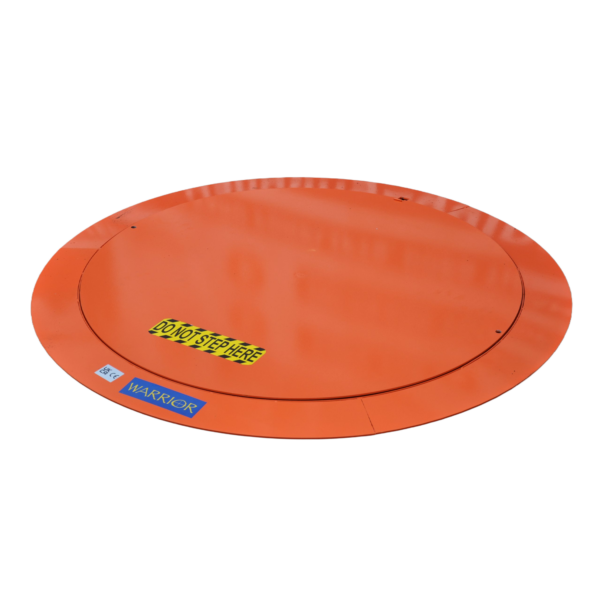

Warrior EcoWarrior Rotating Pallet Disc 1.8t WLL
The Warrior EcoWarrior Pal-Disc Rotating Pallet Disc is a low-profile manual rotating turntable designed to make pallet wrapping, sealing and handling easier and more efficient.
With a 1,800kg WLL and full 360° rotation, pallets can be turned into the required working position without operators having to repeatedly walk around the pallet.
The compact 23mm high design allows pallets to be loaded using a manual or powered pallet truck, while the ramped edge helps provide smooth access onto the rotating disc.
360° Rotating Pallet Turntable

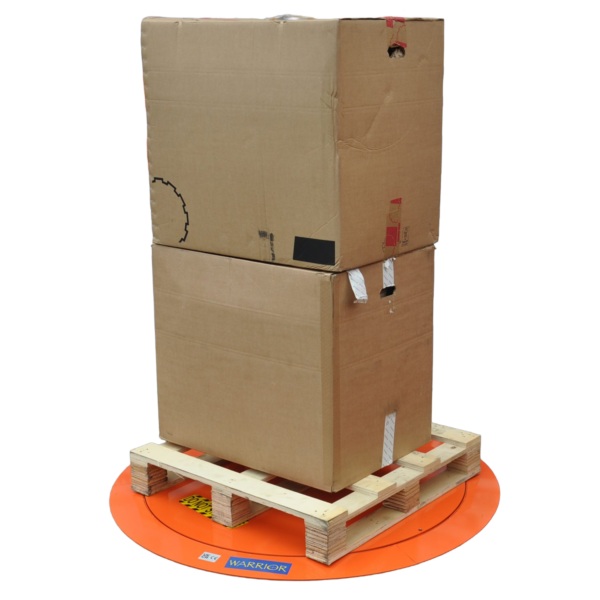

The Pal-Disc provides full 360° rotation, making it particularly useful when wrapping, sealing or inspecting palletised goods.
A built-in foot-operated locking device secures the disc in position when loading or unloading pallets, helping prevent unwanted rotation.
Low Profile Design
At only 23mm high, the Pal-Disc provides a low-profile solution for pallet handling.
The free-rotating, ramped edge is designed to make loading easier with a suitable manual or powered pallet truck, while the compact size makes the unit easy to store when not in use.
Ideal Applications
The Warrior EcoWarrior Pal-Disc is suitable for:
- Pallet wrapping and sealing
- Warehouse operations
- Distribution centres
- Production and manufacturing areas
- Goods handling
- Pallet inspection
- Manual pallet handling
Technical Specifications
| Specification | Details |
| Product | Warrior EcoWarrior Pal-Disc Rotating Pallet Disc |
| Maximum WLL | 1,800kg |
| Rotation | 360° |
| Top Inside Diameter | 1,143mm |
| Top Outside Diameter | 1,371mm |
| Height | 23mm |
| Loading | Manual or powered pallet truck |
| Locking Device | Foot operated |
Technical information
| Weight | 99.9 kg |
|---|
Key Features
- 1,800kg maximum WLL
- Full 360° rotation
- Low-profile 23mm height
- Designed for manual and powered pallet truck loading
- Free-rotating ramped edge
- Foot-operated locking device
- Compact design for easy storage
- Virtually maintenance free
- Ideal for pallet wrapping and sealing operations
Safety & User Instructions
- Never exceed the 1,800kg maximum WLL.
- Ensure the pallet is positioned securely and centrally on the rotating disc.
- Engage the locking device when loading or unloading with a pallet truck.
- Ensure the unit is positioned on a suitable, stable and level surface.
- Keep feet, hands and other body parts clear of the rotating disc and potential pinch points.
- Ensure there is sufficient clearance around the pallet before rotation.
- Inspect the Pal-Disc before use and do not use if damaged or defective.
- Only trained and competent personnel should operate the equipment.
- Follow the manufacturer’s instructions and applicable workplace safety requirements.
