Warrior Manual Folding Workshop Crane – 1t-2t WLL
WAR-HE-MC-WR
Warrior EcoWarrior folding workshop crane with 1,000kg or 2,000kg capacity and a 3-position telescopic jib offering three variable WLL settings. Features a double-acting hand hydraulic pump, swivel safety hook and pressure relief valve for controlled manual lifting. The mobile folding design allows compact storage and transport, making it ideal for workshops, warehouses and industrial maintenance.
From: £715.00£858.00 Exc VATInc VAT
Description

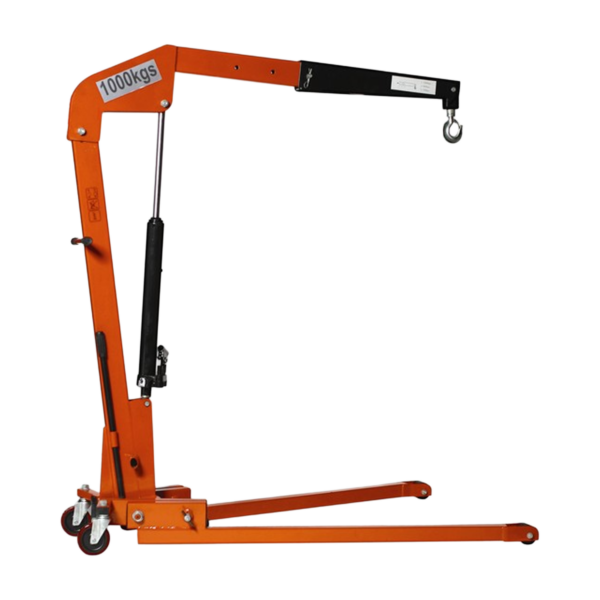

Warrior EcoWarrior Manual Folding Workshop Crane
The Warrior EcoWarrior Heavy-Duty Folding Workshop Crane is a versatile mobile lifting solution designed for workshops, warehouses and industrial environments.
Available in 1,000kg and 2,000kg capacity options, the crane features a 3-position telescopic jib with three variable capacity settings, allowing the lifting configuration to be adjusted to suit different loads and reach requirements.
A double-acting hand hydraulic pump provides controlled manual lifting, while the heavy-duty swivel hook with safety catch helps secure loads during operation.
When not in use, the crane folds down for convenient storage and transport and can stand upright on its four wheels.
Folding Mobile Workshop Crane
The heavy-duty folding design provides a practical lifting solution where space is limited.
Once folded, the crane can be stored upright on its four wheels, helping to reduce the space required when the equipment is not in use.
Adjustable Telescopic Jib
The crane features a 3-position telescopic jib providing three different capacity settings.
The available lifting capacity depends on the selected jib position, with the longer reach positions having a reduced maximum capacity.
Hydraulic Lifting System
A double-acting hand hydraulic pump provides smooth and controlled manual lifting.
A built-in pressure relief valve helps protect the hydraulic system against overloading.
Always check the capacity applicable to the selected jib position before lifting.
Ideal Applications
Suitable for a wide range of lifting and handling tasks, including:
- Workshops and maintenance areas
- Warehouses
- Manufacturing facilities
- Engineering environments
- Machinery maintenance
- Plant and equipment handling
- General industrial lifting
Technical Specifications
| Specification | 1,000kg Version | 2,000kg Version |
| Maximum Capacity | 1,000kg | 2,000kg |
| Capacity – Setting 1 | 1,000kg | 2,000kg |
| Capacity – Setting 2 | 800kg | 1,700kg |
| Capacity – Setting 3 | 700kg | 1,500kg |
| Maximum Hook Height | 2,445mm | 2,705mm |
| Minimum Hook Height | Floor level | Floor level |
| Overall Supporting Height | 80mm | 205mm |
| Overall Dimensions (L x W) | 1630 x 1120mm | 1900 x 1165mm |
| Packing Size (L x W x H) | 1750 x 500 x 650mm | 2000 x 630 x 680mm |
| Jib | 3-position telescopic | 3-position telescopic |
| Pump | Double-acting hand hydraulic | Double-acting hand hydraulic |
| Hook | Swivel hook with safety catch | Swivel hook with safety catch |
| Certification | CE marked | CE marked |
Capacity & Load Information
The crane’s lifting capacity varies according to the selected jib position.
The maximum rated capacity applies only at the specified minimum jib setting. Extending the jib reduces the permissible Working Load Limit.
Always check the applicable capacity for the selected jib position before lifting and never exceed the stated WLL.
Storage & Transport
The folding design allows the crane to be reduced in size when not required. Once folded, it can stand upright on four wheels, making it easier to store and move around the workplace.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2t |
| Maximum Hook Height | 2445mm, 2705mm |
| Product Type | Workshop Crane |
Key Features
- 1,000kg or 2,000kg capacity options
- 3-position telescopic jib
- 3 variable capacity settings
- Double-acting hand hydraulic pump
- Heavy-duty swivel hook with safety catch
- Pressure relief valve to help prevent overloading
- Folding design for convenient storage
- Self-standing on four wheels when folded
- Mobile workshop design
- CE marked
Safety & User Instructions
- Never exceed the rated capacity for the selected jib position.
- Check the applicable WLL before every lift.
- Ensure the crane is positioned on a suitable, stable and level surface.
- Do not exceed the specified hook height or jib position.
- Ensure loads are correctly secured to the swivel hook and safety catch.
- Keep personnel clear of suspended loads and the crane’s operating area.
- Do not lift loads beyond the crane’s rated capacity.
- Inspect the jib, hydraulic system, hook, wheels and structure before use.
- Do not use damaged or defective equipment.
- Ensure the crane is fully stable before lifting.
- Take care when folding, unfolding or moving the crane.
- Only trained and competent personnel should operate the equipment.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
