EcoWarrior M200 Compact Manual Work Positioner – 200kg WLL
WAR-HE-WP-M200
EcoWarrior M200 Compact Manual Work Positioner is a compact manual work positioner with a self-sustaining hand winch, 1,500mm lift height and four swivel castors. Designed for controlled lifting and positioning of loads up to 200kg, it is ideal for workshops, warehouses, maintenance, battery, server and material handling applications.
£858.00£1,029.60 Exc VATInc VAT
Description

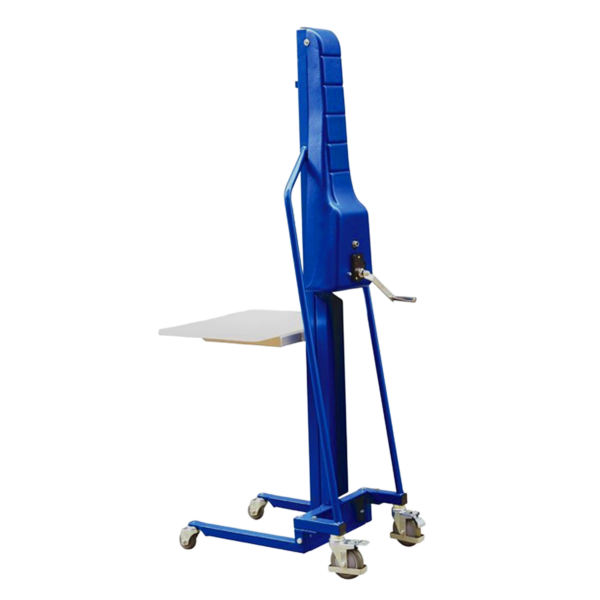

EcoWarrior M200 Compact Manual Work Positioner
EcoWarrior M200 Compact Manual Work Positioner is a lightweight and manoeuvrable solution for lifting and positioning loads up to 200kg where manual handling may otherwise be difficult.
Its compact design and four swivel castors allow easy movement in confined areas, while the self-sustaining hand winch provides controlled lifting and positioning without requiring a powered system.
Manual Lifting & Positioning
The M200 uses a self-sustaining hand-operated winch, allowing the operator to raise a load to the required height and release the handle without the load lowering.
An integrated automatic braking system helps prevent uncontrolled lowering during operation.
Compact & Manoeuvrable
Mounted on four swivel castors, the work positioner is easy to manoeuvre and turn in confined working areas.
With a maximum lift height of 1,500mm, it is suitable for positioning everyday items such as paper, batteries, servers and other lightweight equipment.
Platform & Attachments
A 470 x 600mm platform plate is supplied as standard.
An optional V-block attachment is also available on request.
Ideal Applications
Suitable for lifting and positioning lighter loads in:
- Workshops
- Warehouses
- Production areas
- Packing lines
- Stores and stockrooms
- Maintenance areas
- Offices and commercial environments
- Battery handling
- Server handling
- Paper and material handling
Technical Specifications
| Specification | Details |
| Product | EcoWarrior M200 Manual Work Positioner |
| Maximum WLL | 200kg |
| Load Centre | 235mm |
| Minimum Lift Height | 130mm |
| Maximum Lift Height | 1,500mm |
| Platform Dimensions (L x W) | 470 x 600mm |
| Overall Dimensions (L x W x H) | 870 x 800 x 1,920mm |
| Steering Wheel Diameter | 125mm |
| Load Roller Diameter | 75mm |
| Lifting System | Self-sustaining manual winch |
| Castors | 4 swivel castors |
| Standard Attachment | Platform plate |
| Certification | CE marked |
Capacity & Load Information
The M200 has a maximum Working Load Limit of 200kg at a 235mm load centre.
The load centre should be considered when positioning loads, as the capacity of lifting equipment can be affected by how far the load is positioned from the lifting mechanism.
Working Height
The work positioner has a lifting range from 130mm to 1,500mm, allowing loads to be raised and positioned at a suitable working height.
The standard platform measures 470 x 600mm. Ensure the load is stable and suitably supported before lifting.
Technical information
| Weight | 99.99 kg |
|---|---|
| Product Type | Work Positioner |
| WLL | 200kg |
Key Features
- 200kg maximum WLL
- Compact, lightweight design
- Manual lifting and positioning
- Self-sustaining hand winch
- Automatic brake system
- 1,500mm maximum lift height
- Platform plate supplied as standard
- Four swivel castors
- Easy to manoeuvre in confined areas
- Optional specialist attachments available
- CE marked
Safety & User Instructions
- Never exceed the 200kg maximum WLL.
- Observe the specified 235mm load centre.
- Ensure loads are stable and securely positioned before lifting.
- Keep the load within the platform’s permitted working area.
- Operate the winch smoothly and avoid sudden movements.
- Ensure the automatic braking system is functioning correctly.
- Keep personnel clear of the raised load and lifting mechanism.
- Ensure the work positioner is used on a suitable, stable and level surface.
- Take care when manoeuvring with a raised load.
- Inspect the winch, brake, platform, castors and lifting mechanism before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the equipment.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
