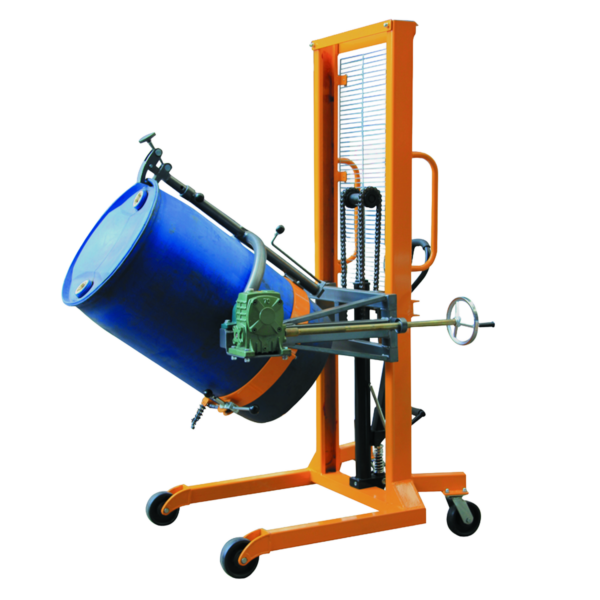

Warrior EcoWarrior Manual Drum Tipper Stacker – 450kg WLL
WAR-HE-DM-WRDTPL
Warrior EcoWarrior WRDTPL45 manual drum tipper stacker with 450kg WLL for lifting, transporting, rotating and tipping steel, plastic and fibre drums up to 210 litres. Features hydraulic hand and pedal-operated lifting, 180° mechanical drum rotation, 3-position locking mechanism and 30:1 transfer box for controlled tipping. CE marked and suitable for industrial drum handling and stacking.
£1,214.00£1,456.80 Exc VATInc VAT
Description

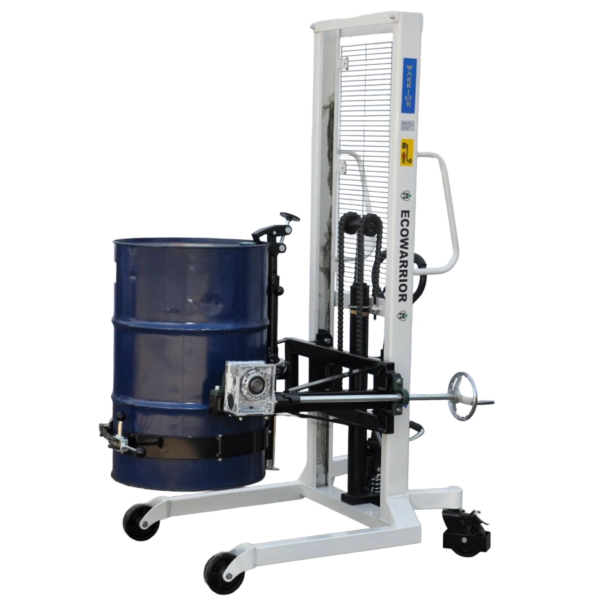

Warrior EcoWarrior Manual Drum Tipper Stacker
The Warrior EcoWarrior WRDTPL45 Manual Drum Tipper Stacker is a versatile drum handling truck designed to lift, transport, rotate and discharge the contents of steel, plastic and fibre drums.
With a 450kg lifting capacity, hydraulic hand and pedal-operated lifting and mechanical hand-wheel tipping, the drum tipper provides controlled handling for drums up to 210 litres.

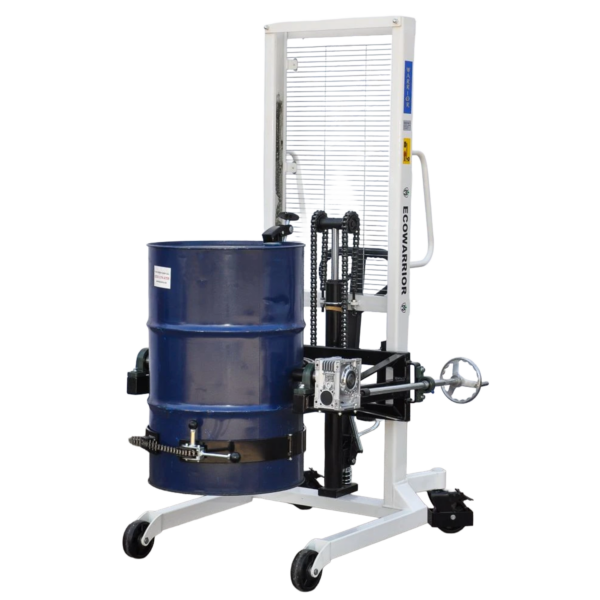

The drum is securely supported around its circumference, with the locking mechanism holding it in position during lifting and rotation.
Manual Drum Lifting & Tipping
The WRDTPL45 uses a hydraulic hand-operated pump and pedal to raise the drum, while a mechanical hand wheel provides controlled rotation.
The drum can be rotated through 180° and locked in both vertical and horizontal positions, allowing contents to be discharged into mixing vessels, containers or through a suitable faucet.
Secure Drum Locking
A 3-position locking mechanism securely holds the drum within the positioning cradle.
The drum is supported around its circumference, including the top and bottom rims, helping to maintain stability during lifting and tipping.
The mechanism is designed to accommodate 210 litre steel, plastic and fibre drums.
Controlled Drum Rotation
A 30:1 ratio transfer box provides geared control during rotation and helps prevent a partially filled drum from running away as its centre of gravity changes during tipping.
The drum can be locked in either the vertical or horizontal position, providing flexibility for storage, draining and emptying applications.
Ideal Applications
Suitable for a wide range of drum handling applications, including:
- Warehouses and distribution centres
- Manufacturing facilities
- Industrial drum handling
- Drum storage and stacking
- Drum emptying and pouring
- Mixing and processing operations
- Draining drums through a faucet
- Moving drums to storage racks
Technical Specifications
| Specification | Details |
| Product | Warrior EcoWarrior WRDTPL45 Manual Drum Tipper Stacker |
| Maximum WLL | 450kg |

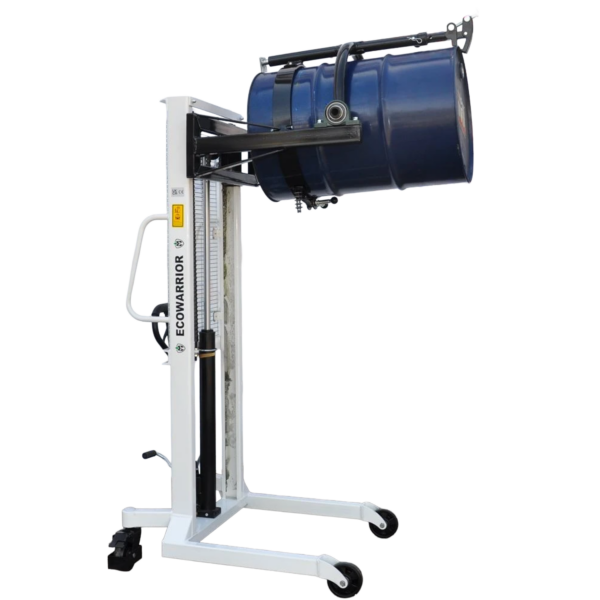

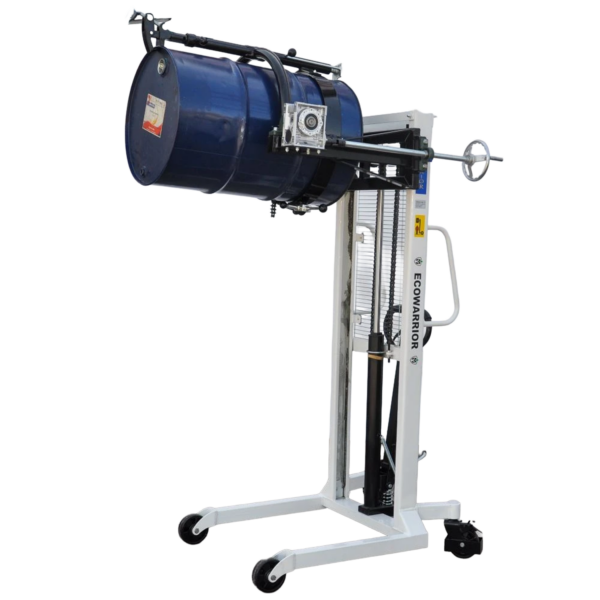

| Maximum Lift Height* | 1,500mm |
| Drum Capacity | Up to 210 litres |
| Drum Compatibility | Steel, plastic and fibre |
| Rotation | Up to 180° |
| Drum Locking | 3-position |
| Rotation Control | 30:1 ratio transfer box |
| Load Roller Size | 150 x 50mm diameter |
| Steering Wheel Size | 150 x 50mm diameter |
| Size Between Legs (Inner/Outer) | 630 / 810mm |
| Leg Length | 770mm |
| Overall Dimensions (L x W x H) | 1400 x 1000 x 2100mm |
| Lifting System | Hydraulic hand/pedal pump |
| Certification | CE marked |
Capacity & Load Information
The WRDTPL45 has a maximum Working Load Limit of 450kg.
Always ensure the combined weight of the drum and its contents does not exceed the rated capacity. The drum must be correctly secured within the locking mechanism before lifting or rotating.
Technical information
| Weight | 99.99 kg |
|---|
Key Features
- 450kg maximum WLL
- Suitable for steel, plastic and fibre drums
- Suitable for drums up to 210 litres
- Hydraulic hand and pedal-operated lifting
- Mechanical hand-wheel drum rotation
- Up to 180° drum rotation
- 3-position drum locking mechanism
- Drum can be locked vertically or horizontally
- 30:1 ratio transfer box helps prevent drum rollback
- Tandem lift chains
- Automatic overload protection
- Maximum lift height specified as 1,500mm
- Suitable for drum stacking and rack handling
- Compact and reliable drum fixing mechanism
- CE marked
Safety & User Instructions
- Never exceed the 450kg maximum WLL.
- Ensure the correct drum size and type is used.
- Follow the manufacturer’s procedure for securing the drum before lifting.
- Ensure the 3-position locking mechanism is fully engaged before operation.
- Check that the drum is securely supported before raising or tipping.
- Keep personnel clear of the drum and its tipping path.
- Take care around pinch points and moving components.
- Ensure the unit is operated on a suitable, stable and level surface.
- Do not leave a suspended drum unattended.
- Inspect the lifting chains, hydraulic system, locking mechanism, transfer box and frame before use.
- Do not use damaged or defective equipment.
- Only trained and competent personnel should operate the equipment.
- Follow the manufacturer’s operating instructions and applicable workplace safety requirements.
