William Hackett Grade 10 Eye Grab Hook
WHL-EGH-G10
William Hackett Hack10 Grade 10 Eye Grab Hook, 1.4t–40t WLL. For chain shortening and lashing, 6mm–32mm chain. Proof tested to 2.5x WLL.
From: £4.01£4.81 Exc VATInc VAT
Description

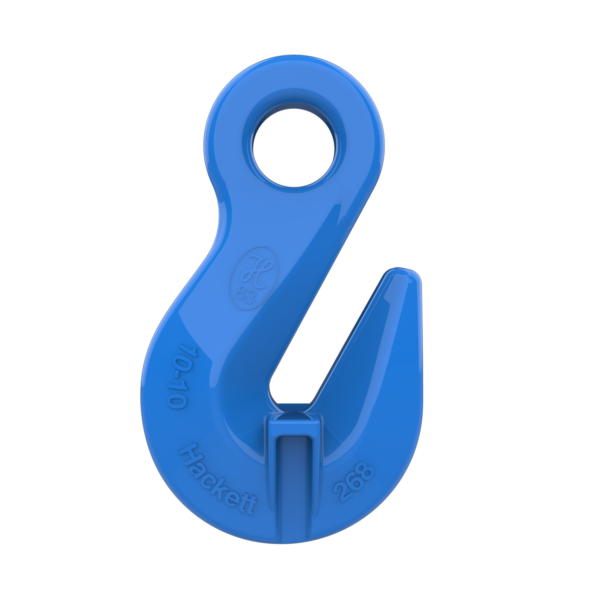

William Hackett Hack10 Grade 10 Eye Grab Hook
The William Hackett Hack10 Grade 10 Eye Grab Hook is designed to grab chain. It is commonly used as a chain shortening device in lifting applications, and for lashing. The eye attachment connects to chain using a Hack10 connector, so the grab hook can be added to a sling leg wherever it’s needed.
The hook is manufactured from alloy steel in accordance with EN 1677-1, ASTM A952/A952M and DIN PAS 1061. It is suitable for use in chain slings certified to EN 818-4.
25% Stronger Than Grade 8
The Hack10 eye grab hook is 25% stronger than its Grade 8 equivalent. This gives a higher Working Load Limit without needing a larger-diameter chain sling. You can often specify a smaller chain size than Grade 8 for the same capacity, which means lighter rigging that is easier to handle and position.
Chain Shortening and Lashing
The grab hook’s slot is sized to hold a link of the matching chain securely. This lets you adjust the effective length of a sling leg to level a load or suit different lifting points. It also makes the eye grab hook useful for chain lashing and load securing on transport and site work.
Tested for Quality and Traceability
William Hackett crack-detects every eye grab hook after heat treatment and proof load tests it to 2.5 times its Working Load Limit. These checks help confirm the integrity of each component before it enters service.
Wide Operating Temperature Range
The Hack10 eye grab hook can be used from -40°C to +200°C with no reduction in Working Load Limit. This makes it suitable for cold outdoor sites, renewables work and warmer industrial settings.
Size & Compatibility
The Hack10 eye grab hook is available for chain sizes from 6mm to 32mm, with Working Load Limits from 1.4 tonnes to 40 tonnes. It is designed to be used with:
- Hack10 Grade 10 lifting chain of the matching size
- Hack10 connectors for attaching to the sling
- Hack10 single and multi-leg chain sling assemblies
Ideal Applications
The William Hackett Hack10 Grade 10 Eye Grab Hook is suitable for:
- Shortening sling legs to level loads or suit different lifting points
- Chain lashing and load securing
- Construction lifting operations
- General industrial and heavy engineering lifting
- Transportation and haulage
- Renewables, including wind energy installation and maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Brand | William Hackett |
| Range | Hack10 |
| Product | Grade 10 Eye Grab Hook |
| Grade | Grade 10 |
| Attachment Type | Eye (connects via connector) |
| Function | Chain shortening and lashing |
| Material | Alloy steel |
| Working Load Limit | 1.4t – 40t, depending on size |
| Chain Size Range | 6mm – 32mm |
| Strength | 25% stronger than Grade 8 equivalent |
| Proof Load Test | 2.5 x WLL |
| Safety Factor | 4:1 |
| Operating Temperature | -40°C to +200°C without reduction in WLL |
| Testing | Crack detected after heat treatment; proof load tested |
| Standards | EN 1677-1, ASTM A952/A952M and DIN PAS 1061; suitable for chain slings certified to EN 818-4 |
| Sectors | Construction, Industrial, Transportation, Renewables |
Size & Dimension Chart
| Part Code | WLL (t) | Chain Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Box Qty | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-H06-06 | 1.4 | 6 | 8.0 | 13.5 | 8.0 | 46.5 | 46.0 | 73.0 | 25.5 | 20.2 | 100 | 0.15 |
| 10-H06-08 | 2.5 | 8 | 11.0 | 17.5 | 9.5 | 53.0 | 61.0 | 93.0 | 33.5 | 22.0 | 70 | 0.30 |
| 10-H06-10 | 4.0 | 10 | 13.5 | 22.0 | 14.0 | 74.0 | 85.0 | 129.0 | 42.0 | 31.0 | 25 | 0.79 |
| 10-H06-13 | 6.7 | 13 | 17.0 | 27.0 | 18.5 | 96.0 | 104.0 | 166.0 | 53.5 | 47.5 | 15 | 1.67 |
| 10-H06-16 | 10.0 | 16 | 19.0 | 36.0 | 22.0 | 116.0 | 119.0 | 186.0 | 74.0 | 48.0 | 8 | 2.74 |
| 10-H06-20 | 16.0 | 20 | 25.0 | 44.0 | 23.0 | 145.0 | 146.0 | 225.0 | 87.0 | 58.0 | 4 | 4.72 |
| 10-H06-22 | 19.0 | 22 | 27.0 | 48.5 | 26.0 | 160.5 | 165.5 | 260.5 | 90.0 | 72.0 | 2 | 8.20 |
| 10-H06-26 | 26.5 | 26 | 34.0 | 52.0 | 34.0 | 190.0 | 204.0 | 311.0 | 110.0 | 79.0 | 2 | 11.35 |
| 10-H06-32 | 40.0 | 32 | 41.0 | 64.0 | 40.0 | 229.0 | 246.0 | 373.0 | 130.0 | 95.0 | 1 | 20.65 |

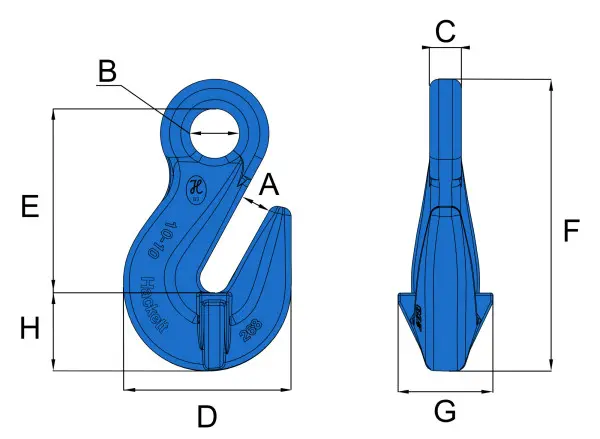

Dimensions refer to the William Hackett product drawing.
Capacity & Load Information
The Working Load Limit of the Hack10 eye grab hook depends on the size you select. The 1.4t–40t range covers the whole product range and does not apply to every size. Always match the grab hook to the chain size and the required WLL of the complete assembly.
When the hook is used to shorten a sling leg, check the manufacturer’s instructions for any WLL reduction that applies to shortened chain. Lashing applications are rated by lashing capacity rather than lifting WLL, so refer to the relevant load-securing guidance. Take into account any applicable reduction factors, such as shock loading or edge loading.
Technical information
| Weight | N/A |
|---|---|
| Component Type | eye grab hook |
| Product Type | Eye Grab Hook |
| WLL | 1.4t, 2.5t, 4t, 6.7t, 10t, 16t, 19t, 26.5t, 40t |
| Gauge | 10, 13, 16, 20, 22, 26, 32, 6, 8 |
| Grade | 10 |
Key Features
- William Hackett Hack10 Grade 10 eye grab hook
- Designed to grab chain for shortening and lashing
- Eye attachment for connecting to chain via a connector
- 25% stronger than Grade 8 equivalent
- Higher WLL without a larger-diameter chain sling
- Manufactured from alloy steel
- Working Load Limits from 1.4 tonnes to 40 tonnes
- Available for chain sizes from 6mm to 32mm
- Manufactured in accordance with EN 1677-1, ASTM A952/A952M and DIN PAS 1061
- Suitable for use in chain slings certified to EN 818-4
- Crack detected following heat treatment
- Proof load tested to 2.5 x WLL
- 4:1 safety factor
- Operating temperature from -40°C to +200°C without WLL reduction
- Suitable for construction, industrial, transportation and renewables sectors
Safety & User Instructions
- Use the grab hook only with Grade 10 chain of the matching size.
- Do not exceed the Working Load Limit of the hook or the complete assembly.
- Make sure the chain link is fully seated in the grab hook slot before applying load.
- Never place the chain on the tip of the hook or load the hook at its point.
- Do not use the grab hook to lift directly under a load or as a lifting hook.
- Inspect the hook before every use for wear, cracks, deformation, a spread slot, nicks or corrosion.
- Take out of service any hook showing damage, distortion or excessive wear.
- Avoid shock loading and sudden application of load.
- Do not use outside the -40°C to +200°C operating temperature range.
- Do not modify, weld or heat-treat the grab hook.
- Follow all manufacturer instructions and make sure the equipment is thoroughly examined in line with LOLER.
