William Hackett Grade 10 Eye Sling Hook
WHL-ESH-G10
William Hackett Hack10 Grade 10 Eye Sling Hook, 2.5t–40t WLL. For chain and wire rope slings. DGUV H-Mark, EN 1677-2.
From: £10.55£12.66 Exc VATInc VAT
Description

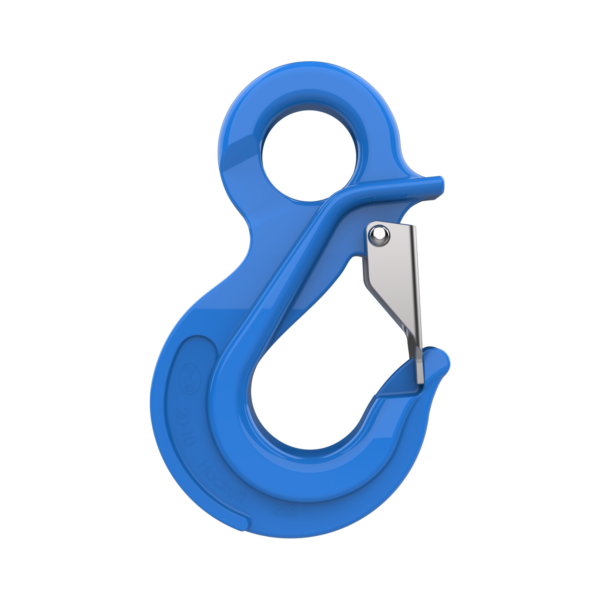

William Hackett Hack10 Grade 10 Eye Sling Hook
The William Hackett Hack10 Grade 10 Eye Sling Hook has a generous hook aperture and bowl. That makes it a versatile hook for a wide range of sling applications. Its eye attachment means it can be used in both chain and wire rope sling assemblies. On chain, it connects using a Hack10 connector.
The hook is manufactured from alloy steel in accordance with EN 1677-2, ASTM A952/A952M and DIN PAS 1061. It is suitable for use in chain slings certified to EN 818-4.
Eye Attachment for Chain and Wire Rope
The eye fitting gives the hook more flexibility than a clevis type. It can be fitted to chain with a connector, or used on wire rope sling assemblies. This makes it a practical choice if you work with more than one sling type, or want a hook that can be moved between assemblies.
DGUV Test H-Mark Certified
The Hack10 eye sling hook has been independently verified and awarded the DGUV Test H-Mark for lifting components, under number H83. This third-party accreditation gives extra assurance of the hook’s quality and performance, on top of the manufacturer’s own testing.
25% Stronger Than Grade 8
The Hack10 eye sling hook is 25% stronger than its Grade 8 equivalent. This gives a higher Working Load Limit without needing a larger-diameter chain sling. You can often specify a smaller chain size than Grade 8 for the same capacity, which means lighter rigging that is easier to handle and position.
Generous Aperture and Bowl
The wide hook opening makes it quick to engage lifting points, eyes and other fittings. The deep bowl gives the load a secure seat. Together they make the eye sling hook a dependable all-round choice for general lifting.
Tested for Quality and Traceability
William Hackett crack-detects every eye sling hook after heat treatment and proof load tests it to 2.5 times its Working Load Limit. These checks help confirm the integrity of each component before it enters service.
Wide Operating Temperature Range
The Hack10 eye sling hook can be used from -40°C to +200°C with no reduction in Working Load Limit. This makes it suitable for cold outdoor sites, renewables work and warmer industrial settings.
Size & Compatibility
The Hack10 eye sling hook is available for chain sizes from 8mm to 32mm, with Working Load Limits from 2.5 tonnes to 40 tonnes. It is designed to be used with:
- Hack10 Grade 10 lifting chain of the matching size, via a Hack10 connector
- Wire rope sling assemblies of a suitable rating
- Hack10 single and multi-leg chain sling assemblies
If you’d prefer a hook that fits directly onto chain without a connector, see the Hack10 clevis sling hook.
Ideal Applications
The William Hackett Hack10 Grade 10 Eye Sling Hook is suitable for:
- General-purpose chain and wire rope sling lifting
- Building and repairing Grade 10 chain slings
- Construction lifting operations
- General industrial and heavy engineering lifting
- Transportation and haulage
- Renewables, including wind energy installation and maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Brand | William Hackett |
| Range | Hack10 |
| Product | Grade 10 Eye Sling Hook |
| Grade | Grade 10 |
| Attachment Type | Eye (chain via connector, or wire rope) |
| Material | Alloy steel |
| Working Load Limit | 2.5t – 40t, depending on size |
| Chain Size Range | 8mm – 32mm |
| Strength | 25% stronger than Grade 8 equivalent |
| Proof Load Test | 2.5 x WLL |
| Safety Factor | 4:1 |
| Operating Temperature | -40°C to +200°C without reduction in WLL |
| Testing | Crack detected after heat treatment; proof load tested |
| Standards | EN 1677-2, ASTM A952/A952M and DIN PAS 1061; suitable for chain slings certified to EN 818-4 |
| Third-Party Accreditation | DGUV Test H-Mark, number H83 |
| Sectors | Construction, Industrial, Transportation, Renewables |
Size & Dimension Chart
| Part Code | WLL (t) | Chain Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Box Qty | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-H15-08 | 2.5 | 8 | 26.0 | 144 | 16.0 | 27 | 86 | 24.0 | 25 | 108 | 25 | 0.66 |
| 10-H15-10 | 4.0 | 10 | 34.0 | 190 | 19.0 | 33 | 103 | 24.0 | 31 | 143 | 15 | 1.22 |
| 10-H15-13 | 6.7 | 13 | 42.0 | 227 | 23.0 | 40 | 135 | 38.0 | 39 | 172 | 6 | 2.43 |
| 10-H15-16 | 10.0 | 16 | 52.0 | 257 | 28.5 | 44 | 161 | 41.5 | 41 | 195 | 5 | 3.65 |
| 10-H15-20 | 16.0 | 20 | 55.0 | 298 | 27.0 | 50 | 190 | 48.0 | 56 | 215 | 2 | 6.20 |
| 10-H15-22 | 19.0 | 22 | 60.0 | 330 | 29.0 | 64 | 214 | 50.0 | 62 | 239 | 2 | 8.50 |
| 10-H15-26 | 26.5 | 26 | 70.0 | 376 | 35.0 | 70 | 245 | 60.0 | 75 | 265 | 2 | 13.60 |
| 10-H15-32 | 40.0 | 32 | 81.5 | 458 | 39.0 | 82 | 270 | 71.0 | 89 | 331 | 2 | 17.50 |

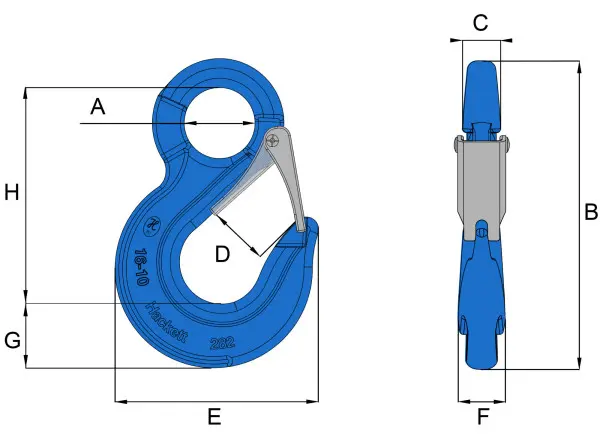

Dimensions refer to the William Hackett product drawing.
Capacity & Load Information
The Working Load Limit of the Hack10 eye sling hook depends on the size you select. The 2.5t–40t range covers the whole product range and does not apply to every size. Always match the hook to the chain size, or the wire rope sling rating, and the required WLL of the complete assembly.
In any sling, the overall WLL is set by its configuration and its lowest-rated component. Take into account any applicable reduction factors, such as shock loading, edge loading or asymmetric loading, as set out in the manufacturer’s instructions.
Technical information
| Weight | N/A |
|---|---|
| Product Type | Eye Sling Hook |
| Component Type | Sling Hook |
| WLL | 2.5t, 4t, 6.7t, 10t, 16t, 19t, 26.5t, 40t |
| Gauge | 10, 13, 16, 20, 22, 26, 32, 8 |
| Grade | 10 |
Key Features
- William Hackett Hack10 Grade 10 eye sling hook
- Generous hook aperture and bowl for versatile use
- Eye attachment suits both chain and wire rope sling assemblies
- DGUV Test H-Mark certified under number H83
- 25% stronger than Grade 8 equivalent
- Higher WLL without a larger-diameter chain sling
- Manufactured from alloy steel
- Working Load Limits from 2.5 tonnes to 40 tonnes
- Available for chain sizes from 8mm to 32mm
- Manufactured in accordance with EN 1677-2, ASTM A952/A952M and DIN PAS 1061
- Suitable for use in chain slings certified to EN 818-4
- Crack detected following heat treatment
- Proof load tested to 2.5 x WLL
- 4:1 safety factor
- Operating temperature from -40°C to +200°C without WLL reduction
- Suitable for construction, industrial, transportation and renewables sectors
Safety & User Instructions
- Use the hook only with chain or wire rope slings of a matching size and rating.
- Do not mix grades within a chain sling assembly.
- Do not exceed the Working Load Limit of the hook or the complete sling.
- When fitting to chain, use the correct size Hack10 connector and make sure it is fully assembled and secure.
- Seat the load fully in the bowl of the hook; never load the hook on its tip.
- Avoid side loading, back loading and point loading of the hook.
- Inspect the hook before every use for wear, cracks, deformation, an opened throat, nicks or corrosion.
- Take out of service any hook showing damage, distortion or excessive wear.
- Avoid shock loading and sudden application of load.
- Do not use outside the -40°C to +200°C operating temperature range.
- Do not modify, weld or heat-treat the hook.
- Follow all manufacturer instructions and make sure the equipment is thoroughly examined in line with LOLER.
